FANUC
M-2000iA/2300

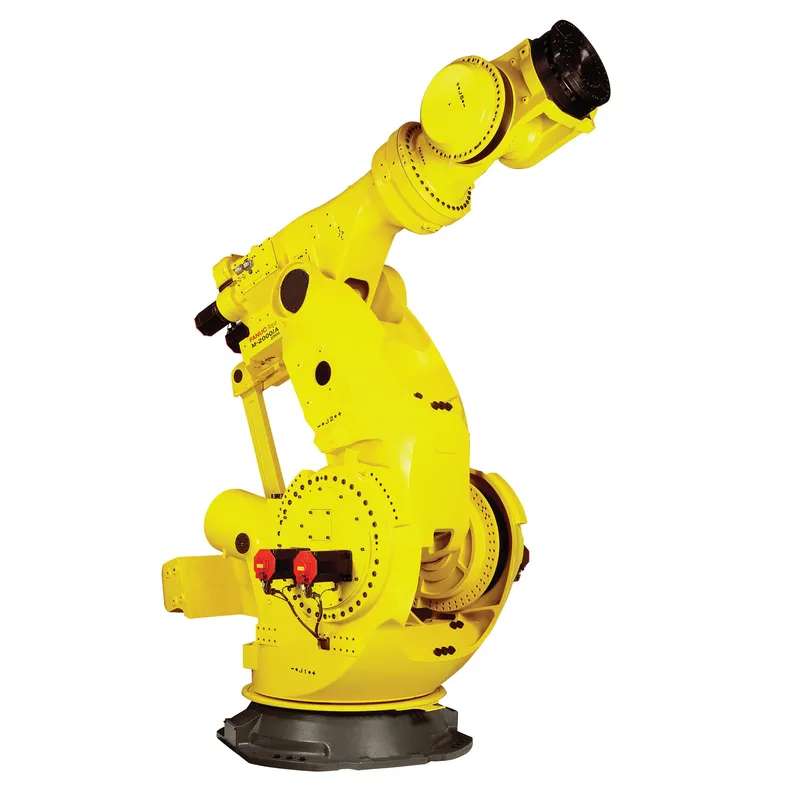

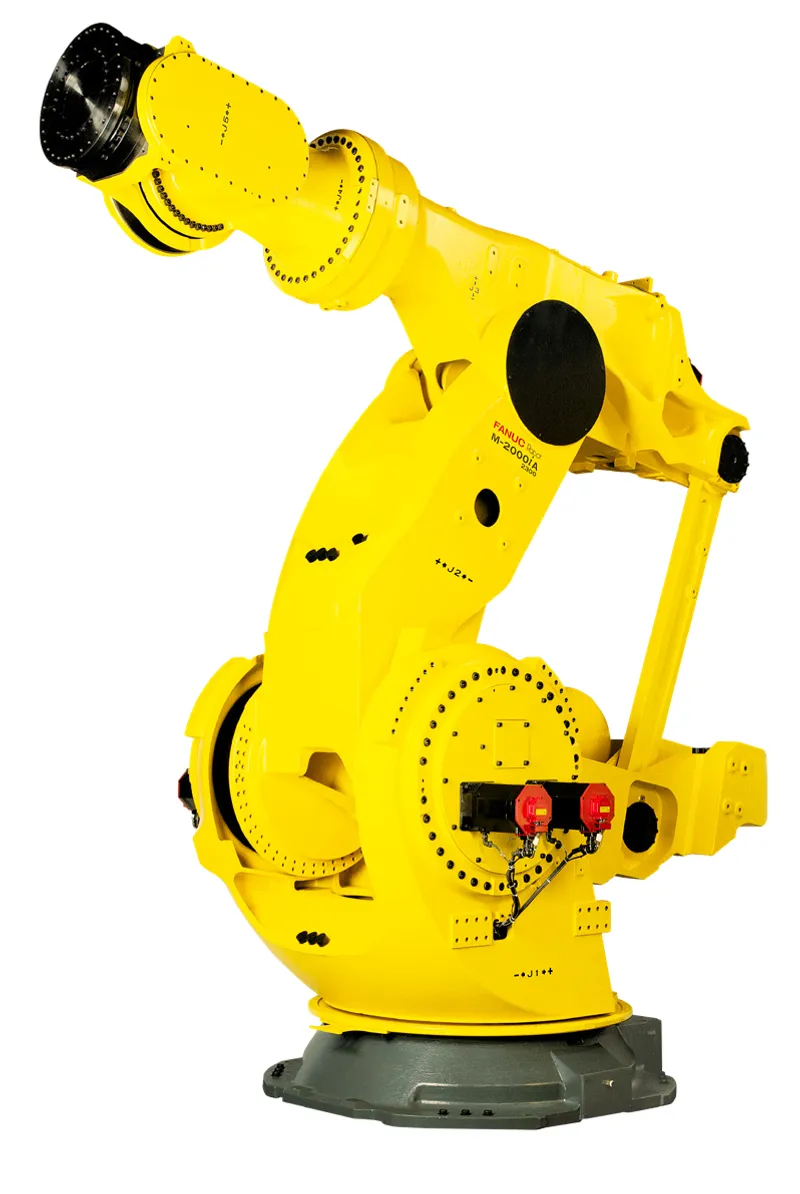

FANUC's biggest lifter — a 2,300 kg-payload arm with 3734 mm reach and crane-like extended-reach capability, built for extremely high-precision handling of the heaviest parts.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 2,300 kg 99th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,734 mm 98th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.18 mm 3th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | — | 20 °/s |
| J2 | — | 14 °/s |
| J3 | — | 14 °/s |
| J4 | — | 18 °/s |
| J5 | — | 18 °/s |
| J6 | — | 40 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 11,000 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Industrial Robotics Hub — industrialroboticshub.com
Specifications sourced from FANUC official datasheet ↗. Specs last verified 2026-08-31.
Owner reviews
Real, first-hand feedback from people who run the FANUC M-2000iA/2300. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the FANUC M-2000iA/2300? +
The FANUC M-2000iA/2300 has a maximum payload of 2,300 kg.
What is the reach of the FANUC M-2000iA/2300? +
The FANUC M-2000iA/2300 has a maximum reach of 3,734 mm (3.73 m).
What is the repeatability of the FANUC M-2000iA/2300? +
The FANUC M-2000iA/2300 has a pose repeatability of ±0.18 mm (ISO 9283), making it suitable for precision work.
How many axes does the FANUC M-2000iA/2300 have? +
The FANUC M-2000iA/2300 is a 6-axis articulated arm robot.
What is the FANUC M-2000iA/2300 used for? +
The FANUC M-2000iA/2300 is typically used for material-handling.
