Articulated arm 🇯🇵 Japan ✓ Verified specs

Kawasaki Robotics

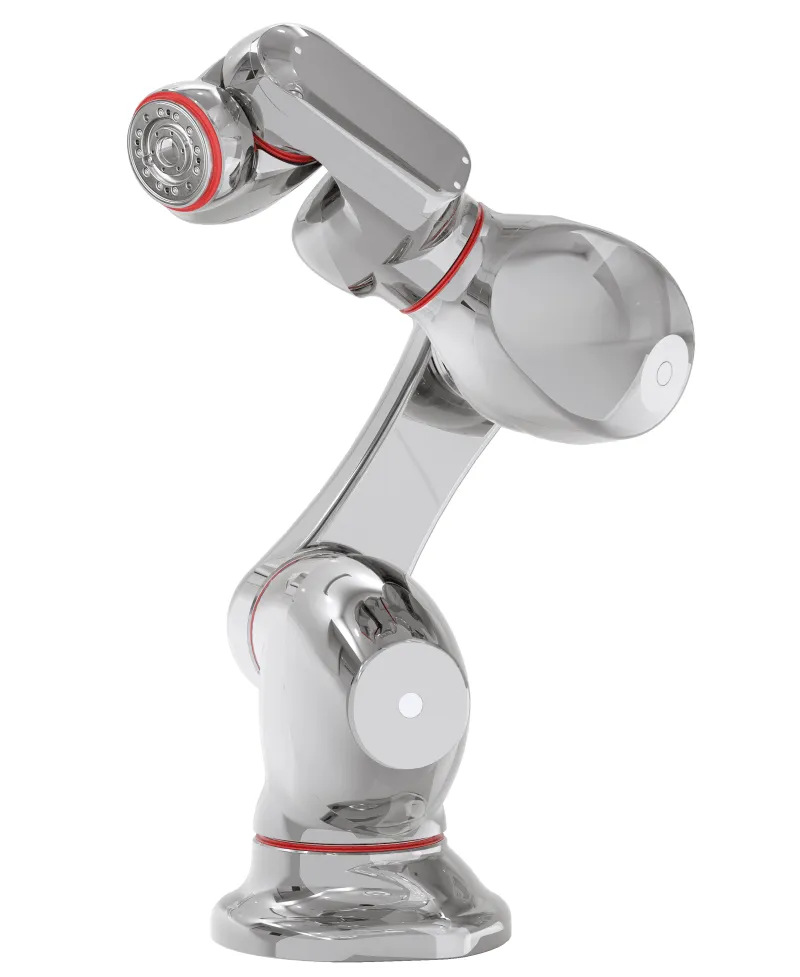

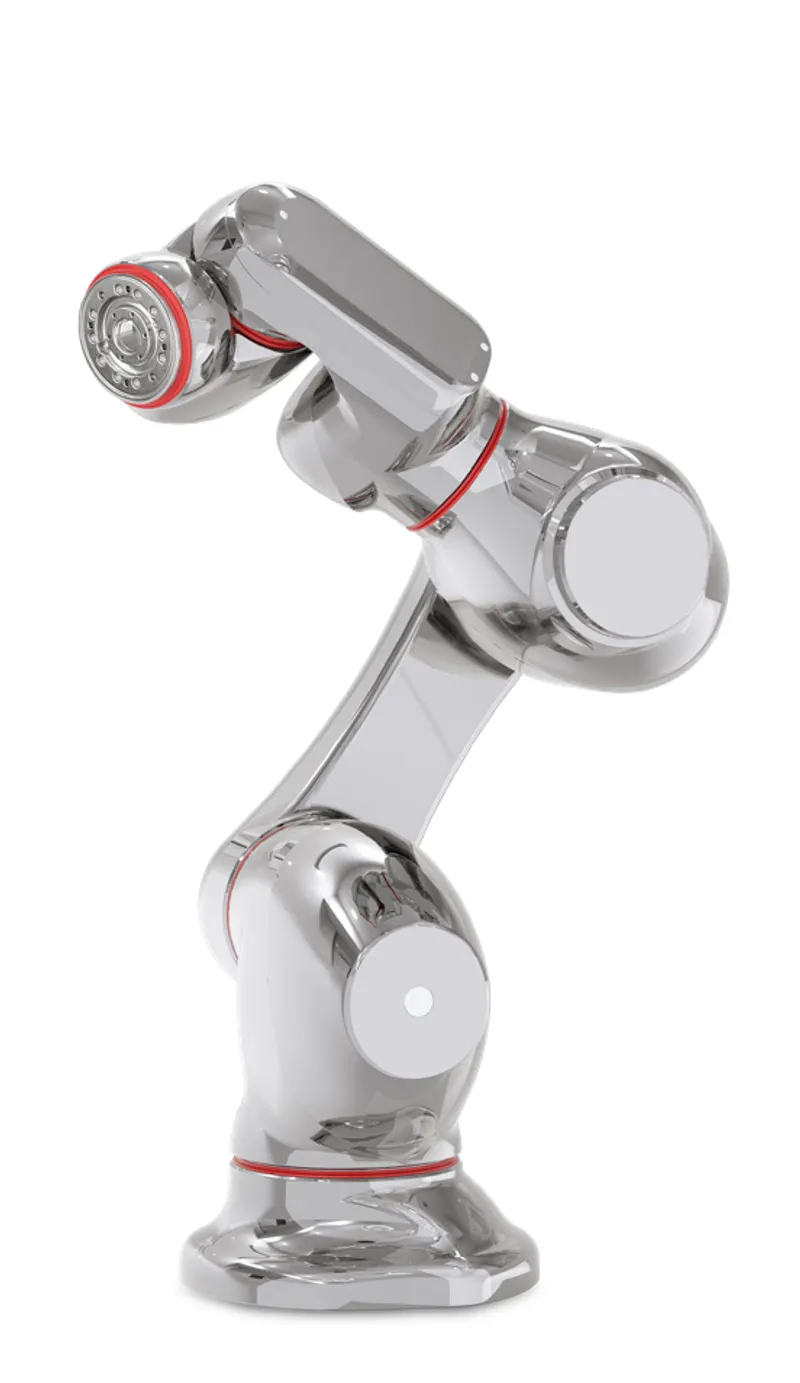

MC006V-A

A compact 6-axis, 6 kg-payload robot for pharmaceutical and medical manufacturing, offering the largest payload, fastest speed and widest reach yet in Kawasaki's MC series, with IP67-equivalent sealing and validated resistance to VHP and other sterilization chemicals for GMP Grade A/B clean environments. Officially launched June 26, 2025.

Payload

6 kg

@ full reach: usually lower

Reach

610 mm

Repeatability

±0.03 mm

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 6 kg

14th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 610 mm

10th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.03 mm

51th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6
Wrist torque Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.: 13 N·m

9th pct in class
Wrist inertia Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.: 0.5 kg·m²

16th pct in class

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 44 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor, ceiling, wall
Colour Standard finish colour.: Chrome-plated, buffed exterior

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP67

71th pct in class
Operating temp Ambient temperature range for normal operation.: 10 to 35 °C
Humidity Permissible relative-humidity range (non-condensing).: 35 to 85 %RH
Cleanroom class ISO 14644-1 cleanroom rating the robot is certified for. Lower number = cleaner environment.: 5 ISO

35th pct in class

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: No

Specifications sourced from Kawasaki Robotics official datasheet ↗. Specs last verified 2026-07-13.
