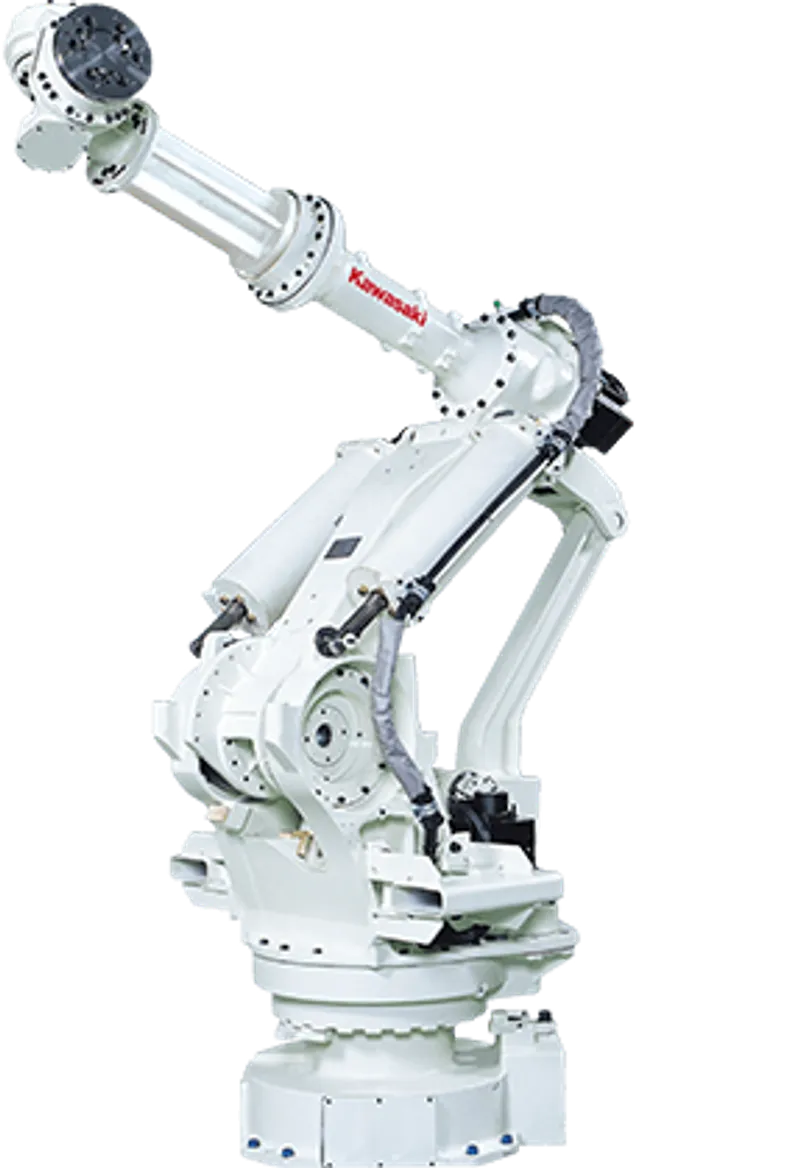

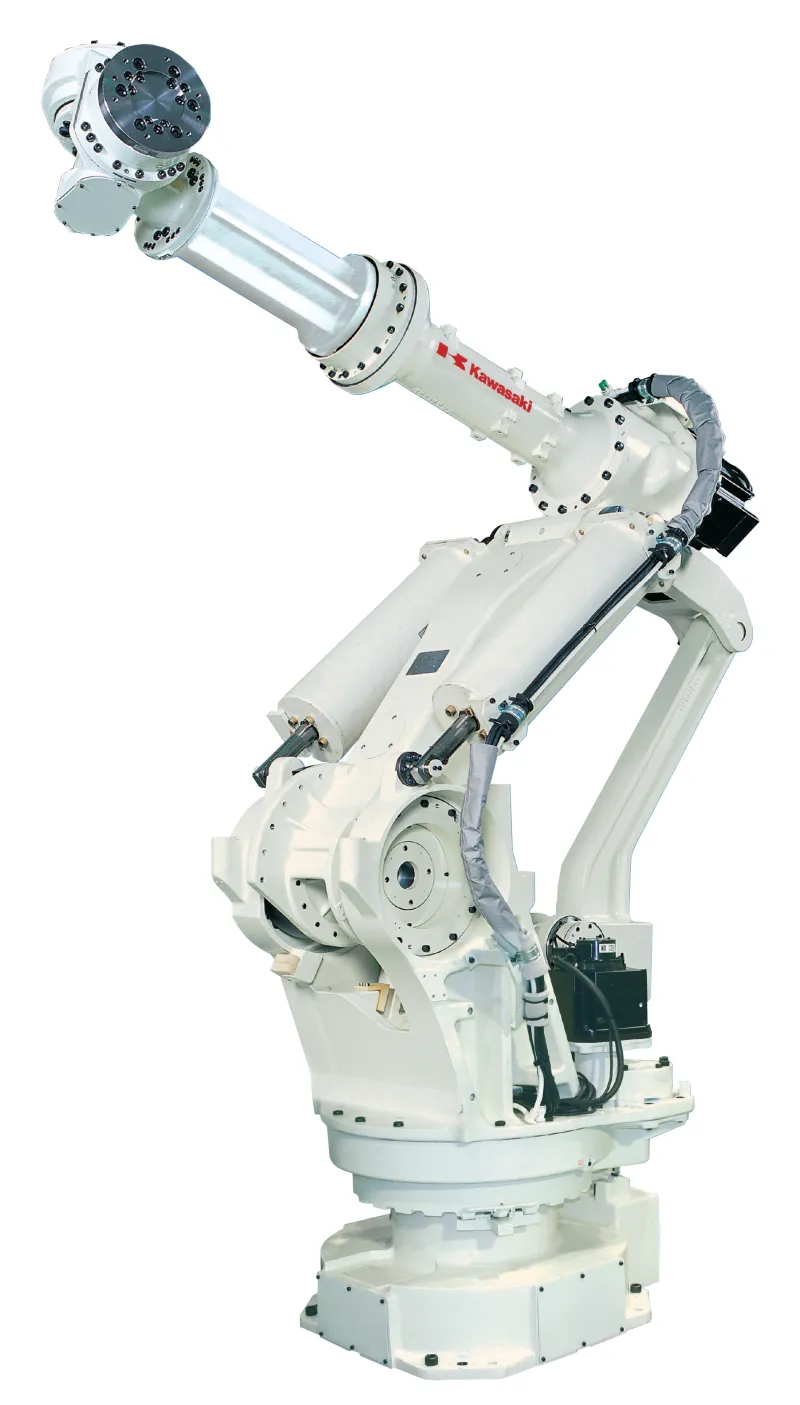

Product image © Kawasaki Robotics, shown for identification. Official source ↗.
Kawasaki Robotics
MX350L
An extra-large 350 kg arm with 3018 mm reach featuring one of the highest wrist torque ratings in its class — Kawasaki's MX350L handles heavy stamped parts, large tooling and oversized material handling without counterweights.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 350 kg 89th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,018 mm 86th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.1 mm 4th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 2,740 N·m 88th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 400 kg·m² 91th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 120 °/s 3th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -180° to 180° | 80 °/s |
| J2 | -45° to 90° | 70 °/s |
| J3 | -115° to 20° | 70 °/s |
| J4 | -360° to 360° | 80 °/s |
| J5 | -110° to 110° | 80 °/s |
| J6 | -360° to 360° | 120 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 2,800 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
- Colour
Standard finish colour.
- Munsell 10GY9/1 or equivalent
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- F04 Controller
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 35 to 85 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- AS
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Kawasaki Robotics official datasheet ↗. Specs last verified 2026-07-16.
Owner reviews
Real, first-hand feedback from people who run the Kawasaki Robotics MX350L. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Kawasaki Robotics MX350L? +
The Kawasaki Robotics MX350L has a maximum payload of 350 kg.
What is the reach of the Kawasaki Robotics MX350L? +
The Kawasaki Robotics MX350L has a maximum reach of 3,018 mm (3.02 m).
What is the repeatability of the Kawasaki Robotics MX350L? +
The Kawasaki Robotics MX350L has a pose repeatability of ±0.1 mm (ISO 9283), making it suitable for precision work.
How many axes does the Kawasaki Robotics MX350L have? +
The Kawasaki Robotics MX350L is a 6-axis articulated arm robot.
What is the Kawasaki Robotics MX350L used for? +
The Kawasaki Robotics MX350L is typically used for material-handling, machine-tending.
What controller does the Kawasaki Robotics MX350L use? +
The Kawasaki Robotics MX350L runs on the F04 Controller controller.
How much does the Kawasaki Robotics MX350L cost? +
Kawasaki Robotics MX350L: Price on application. Industrial robots are typically quoted per project through authorized distributors.
