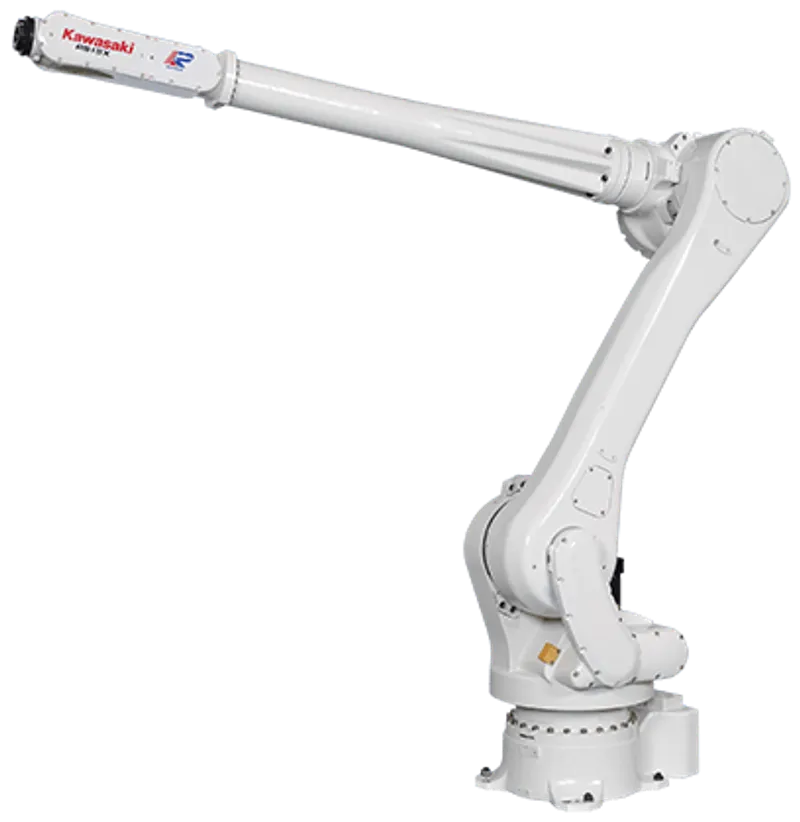

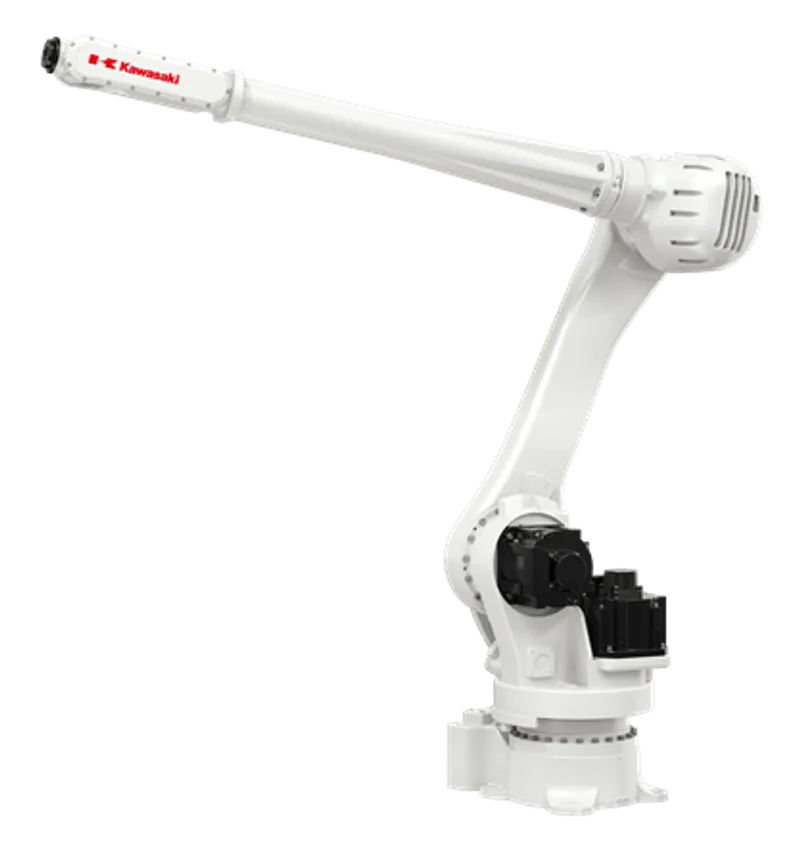

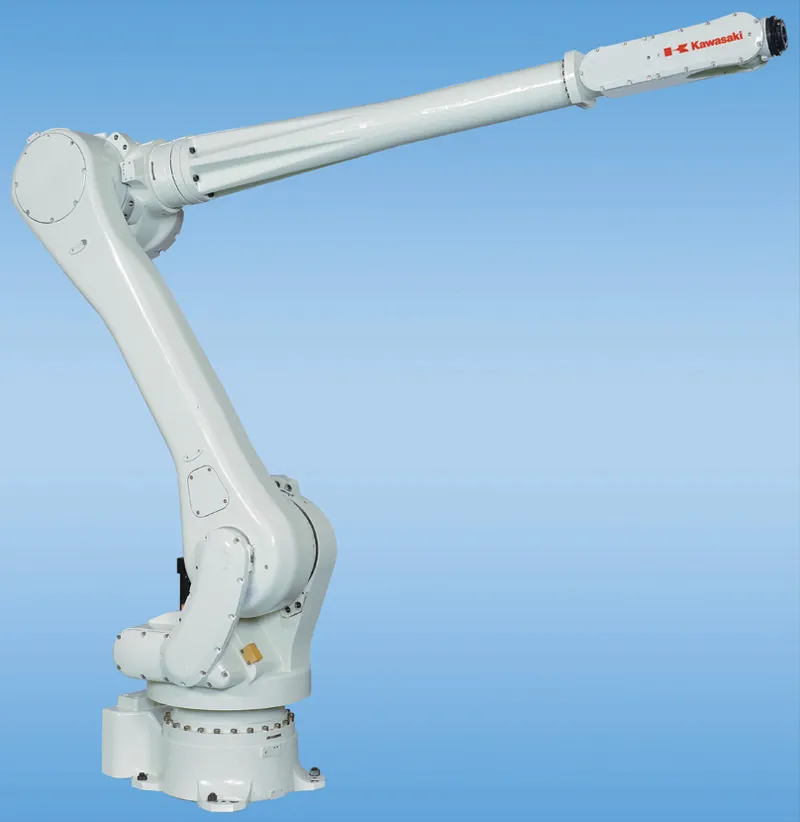

RS015X

A long-reach 15 kg arm extending to 3150 mm — the extended-reach variant in Kawasaki's R series, purpose-built for large work cells, press-to-press transfer and applications requiring wide horizontal coverage.

Partial · 46%

Payload

15 kg

Reach

3,150 mm

Repeatability

±0.06 mm

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 15 kg

51th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 3,150 mm

91th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.06 mm

15th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6

Motion range & speed

Per-axis travel limits and rotational speeds.

Motion range and maximum speed per joint.

Axis	Range	Max speed
J1	-180° to 180°	180 °/s
J2	-105° to 140°	180 °/s
J3	-155° to 135°	200 °/s
J4	-360° to 360°	410 °/s
J5	-145° to 145°	360 °/s
J6	-360° to 360°	610 °/s

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 545 kg
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor, ceiling

Power & controller

Electrical supply and the control cabinet that drives it.

Power supply Required input voltage / phase for the controller.: AC 200-220V 3-Phase
Controller The control cabinet / unit that runs the robot.: F02 Controller
Controller weight Mass of the control cabinet. Lower saves space/weight.: 40 kg

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP65

47th pct in class
Operating temp Ambient temperature range for normal operation.: 0 to 45 °C

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: No
Safety standards Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).: ISO 10218-1

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: teach-pendant, offline-sim
Languages Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).: AS
Offline programming Whether programs can be built and validated offline in a digital twin before deployment.: Yes

Connectivity & I/O

Signals, fieldbuses and tooling interfaces.

Fieldbus Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).: PROFINET, EtherNet/IP, EtherCAT

Specifications sourced from Kawasaki Robotics official datasheet ↗. Specs last verified 2026-06-23.
