ABB Robotics
IRB 2600ID-15/1.85
The Integrated Dressing (ID) variant of the IRB 2600, with process cabling routed through the arm for arc welding, dispensing and machine tending — larger working range and up to 15% shorter cycle times than the base IRB 2600.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 15 kg 42th pct in class

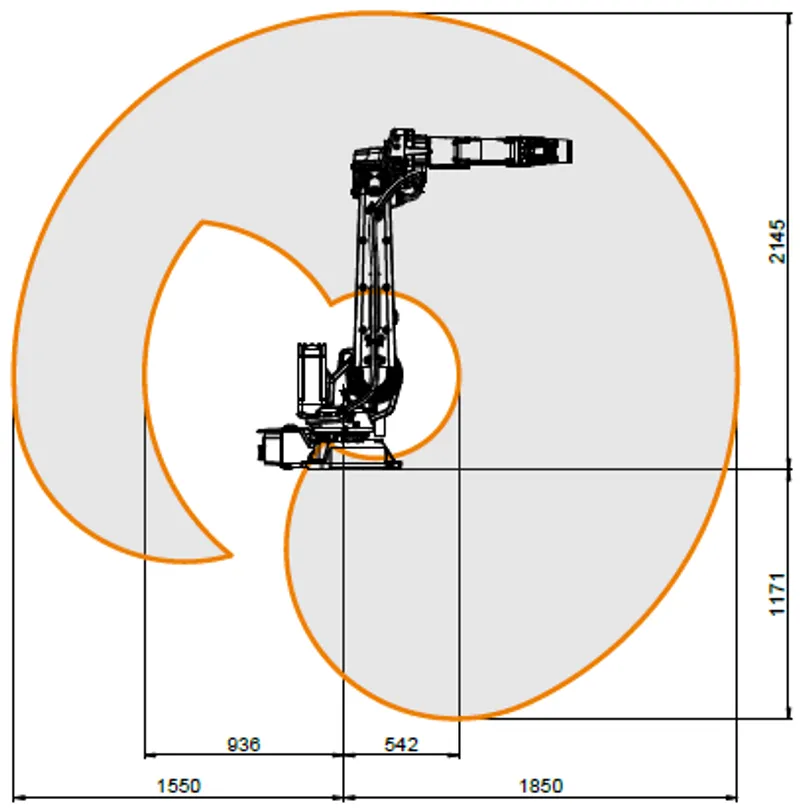

- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,850 mm 54th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.026 mm 66th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 284 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, wall, tilted
Power & controller
Electrical supply and the control cabinet that drives it.
- Power draw
Typical operating power consumption. Lower is more efficient.
- 860 W 61th pct in class
- Controller
The control cabinet / unit that runs the robot.
- IRC5
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 71th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Specifications sourced from ABB Robotics official datasheet ↗. Specs last verified 2026-07-13.
Owner reviews
Real, first-hand feedback from people who run the ABB Robotics IRB 2600ID-15/1.85. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ABB Robotics IRB 2600ID-15/1.85? +
The ABB Robotics IRB 2600ID-15/1.85 has a maximum payload of 15 kg.
What is the reach of the ABB Robotics IRB 2600ID-15/1.85? +
The ABB Robotics IRB 2600ID-15/1.85 has a maximum reach of 1,850 mm (1.85 m).
What is the repeatability of the ABB Robotics IRB 2600ID-15/1.85? +
The ABB Robotics IRB 2600ID-15/1.85 has a pose repeatability of ±0.026 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the ABB Robotics IRB 2600ID-15/1.85 have? +
The ABB Robotics IRB 2600ID-15/1.85 is a 6-axis articulated arm robot.
What is the ABB Robotics IRB 2600ID-15/1.85 used for? +
The ABB Robotics IRB 2600ID-15/1.85 is typically used for arc-welding, dispensing, machine-tending.
What controller does the ABB Robotics IRB 2600ID-15/1.85 use? +
The ABB Robotics IRB 2600ID-15/1.85 runs on the IRC5 controller.
What is the IP rating of the ABB Robotics IRB 2600ID-15/1.85? +
The ABB Robotics IRB 2600ID-15/1.85 arm carries an IP67 ingress-protection rating.
