1 photo

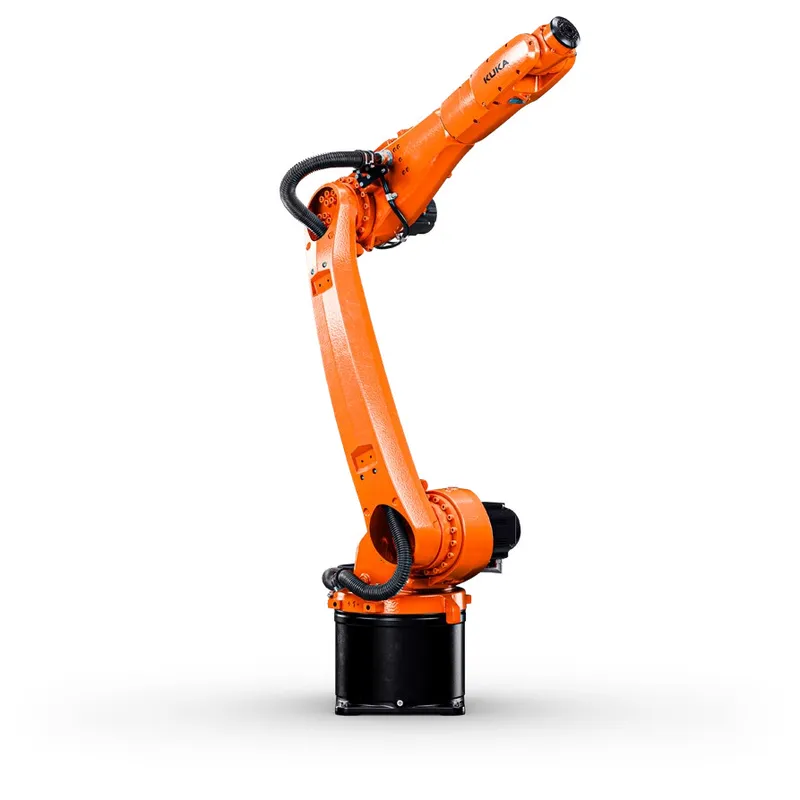

Product image © KUKA, shown for identification. Official source ↗.

Documents

Manufacturer KR 6 R1840-2 Technical Data Sheet (PDF)

Articulated arm 🇩🇪 Germany ✓ Verified specs

KUKA

KR 6 R1840-2

KUKA KR 6 R1840-2 is the flagship of the KR CYBERTECH nano-2 family, a 6 kg rated / 9 kg max payload robot with 1840 mm reach and 0.04 mm repeatability, IP65 body / IP67 wrist protection.

Payload

6 kg

@ full reach: usually lower

Reach

1,840 mm

Repeatability

±0.04 mm

💲 Price on application

Full specifications

Performance

How much it lifts, how far it reaches, how precisely it repeats.

Payload Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.: 6 kg

14th pct in class
Reach Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.: 1,840 mm

53th pct in class
Repeatability How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.: 0.04 mm

43th pct in class
Axes (DOF) Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.: 6

Motion range & speed

Per-axis travel limits and rotational speeds.

Motion range and maximum speed per joint.

Axis	Range	Max speed
J1	-170° to 170°	220 °/s
J2	-185° to 65°	210 °/s
J3	-137° to 163°	270 °/s
J4	-185° to 185°	381 °/s
J5	-120° to 120°	311 °/s
J6	-350° to 350°	472 °/s

Physical

Size, mass and how it mounts.

Robot weight Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.: 162 kg
Base footprint Length × width of the mounting base — the floor space the robot occupies.: 333.5 × 307 mm
Mounting Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).: floor, ceiling, wall, angle

Environment

Conditions it can operate in — dust, water, temperature, cleanliness.

IP rating (arm) Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.: IP65

48th pct in class
IP rating (wrist) Ingress protection at the wrist, often higher than the body for wet/washdown duty.: IP67

14th pct in class
Operating temp Ambient temperature range for normal operation.: 0 to 55 °C

Safety

Standards met and collaborative-operation capability.

Collaborative Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).: No

Control & software

Programming, languages and ecosystem.

Programming How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.: teach-pendant, offline-programming
ROS support Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).: none

Specifications sourced from KUKA official datasheet ↗. Specs last verified 2026-07-27.
