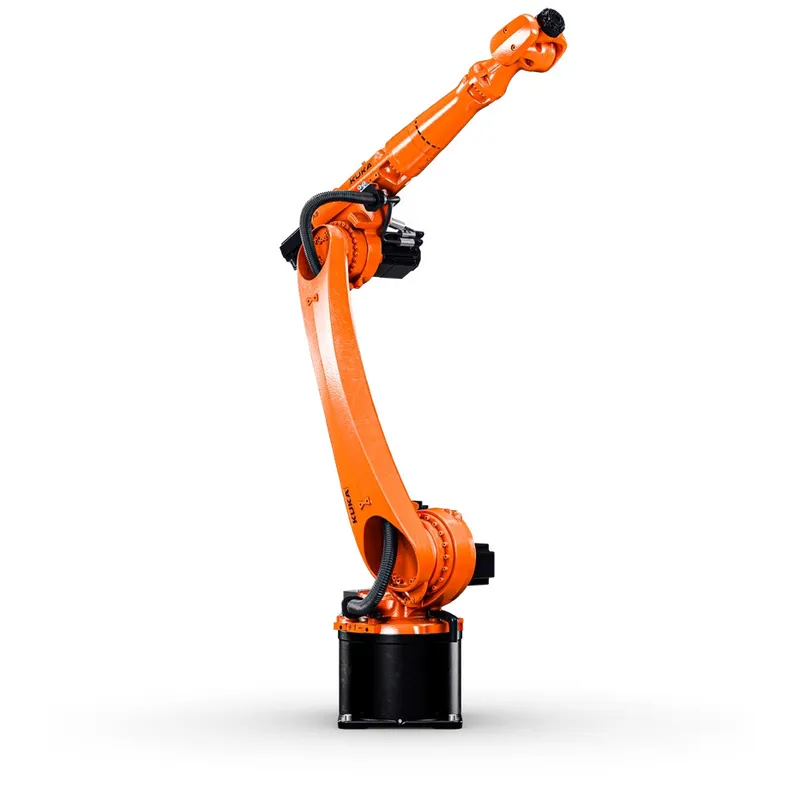

Product image © KUKA, shown for identification. Official source ↗.
KUKA
KR 8 R2010-2
Long-reach, low-payload member of KUKA's classic KR CYBERTECH family, combining an 8 kg payload with a 2013 mm reach and IP65 protection for handling, machining, assembly and palletizing.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 8 kg 24th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 2,013 mm 55th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.04 mm 43th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 630 °/s 64th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -185° to 185° | 200 °/s |
| J2 | -185° to 65° | 175 °/s |
| J3 | -138° to 175° | 190 °/s |
| J4 | -350° to 350° | 430 °/s |
| J5 | -130° to 130° | 430 °/s |
| J6 | -350° to 350° | 630 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 260 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, angle
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP65 48th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP65 6th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 55 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
Specifications sourced from KUKA official datasheet ↗. Specs last verified 2026-08-03.
Owner reviews
Real, first-hand feedback from people who run the KUKA KR 8 R2010-2. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the KUKA KR 8 R2010-2? +
The KUKA KR 8 R2010-2 has a maximum payload of 8 kg.
What is the reach of the KUKA KR 8 R2010-2? +
The KUKA KR 8 R2010-2 has a maximum reach of 2,013 mm (2.01 m).
What is the repeatability of the KUKA KR 8 R2010-2? +
The KUKA KR 8 R2010-2 has a pose repeatability of ±0.04 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the KUKA KR 8 R2010-2 have? +
The KUKA KR 8 R2010-2 is a 6-axis articulated arm robot.
What is the KUKA KR 8 R2010-2 used for? +
The KUKA KR 8 R2010-2 is typically used for material-handling, machining, assembly, palletizing.
What controller does the KUKA KR 8 R2010-2 use? +
The KUKA KR 8 R2010-2 runs on the KR C5 / KR C5-2 controller.
What is the IP rating of the KUKA KR 8 R2010-2? +
The KUKA KR 8 R2010-2 arm carries an IP65 ingress-protection rating.
