KUKA

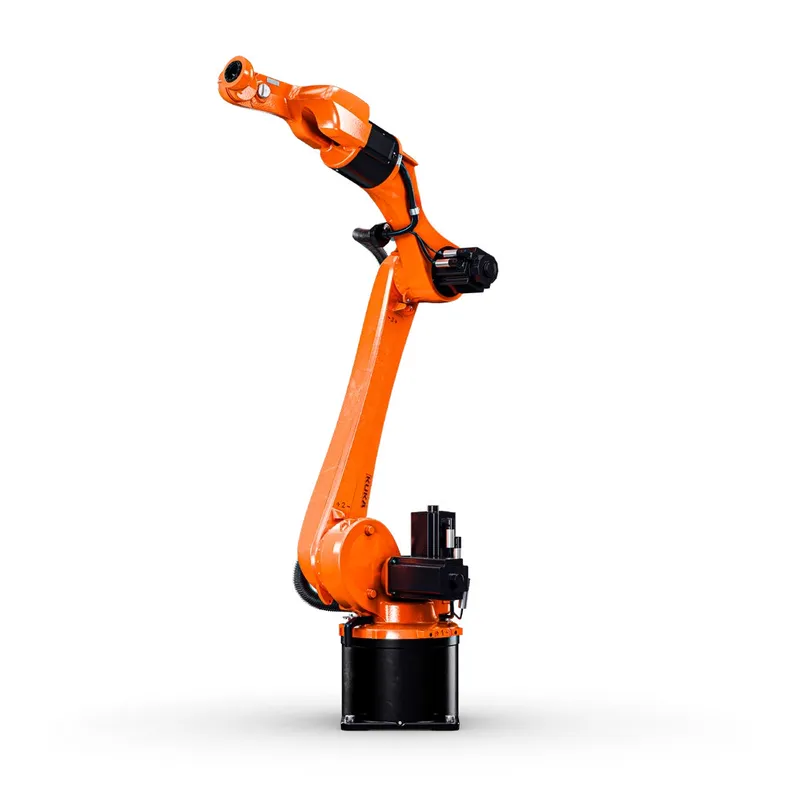

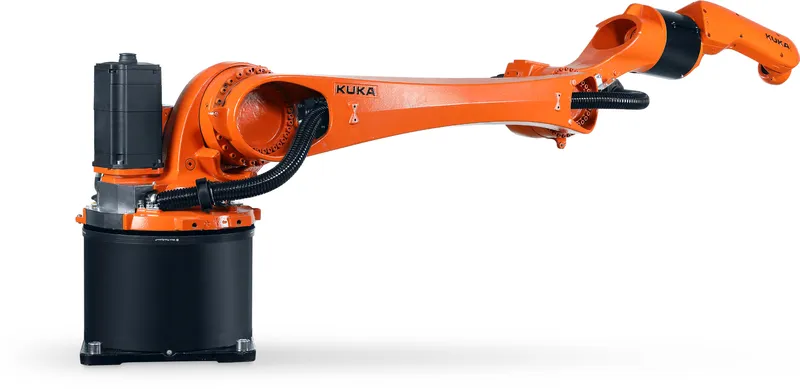

KR 8 R2100-2 arc HW
Hollow-wrist continuous-path robot from KUKA's KR CYBERTECH ARC family, purpose-built for arc welding and adhesive/sealant dispensing with an 8 kg payload and 2101 mm reach.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 8 kg 22th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 2,101 mm 78th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.04 mm 11th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 260 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, angle
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 0th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP65 0th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
Specifications sourced from KUKA official datasheet ↗. Specs last verified 2026-08-03.
Owner reviews
Real, first-hand feedback from people who run the KUKA KR 8 R2100-2 arc HW. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the KUKA KR 8 R2100-2 arc HW? +
The KUKA KR 8 R2100-2 arc HW has a maximum payload of 8 kg.
What is the reach of the KUKA KR 8 R2100-2 arc HW? +
The KUKA KR 8 R2100-2 arc HW has a maximum reach of 2,101 mm (2.10 m).
What is the repeatability of the KUKA KR 8 R2100-2 arc HW? +
The KUKA KR 8 R2100-2 arc HW has a pose repeatability of ±0.04 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the KUKA KR 8 R2100-2 arc HW have? +
The KUKA KR 8 R2100-2 arc HW is a 6-axis welding robot.
What is the KUKA KR 8 R2100-2 arc HW used for? +
The KUKA KR 8 R2100-2 arc HW is typically used for welding, adhesive-dispensing, cutting.
What controller does the KUKA KR 8 R2100-2 arc HW use? +
The KUKA KR 8 R2100-2 arc HW runs on the KR C5 / KR C5-2 controller.
What is the IP rating of the KUKA KR 8 R2100-2 arc HW? +
The KUKA KR 8 R2100-2 arc HW arm carries an IP54 ingress-protection rating.
