Kawasaki Robotics

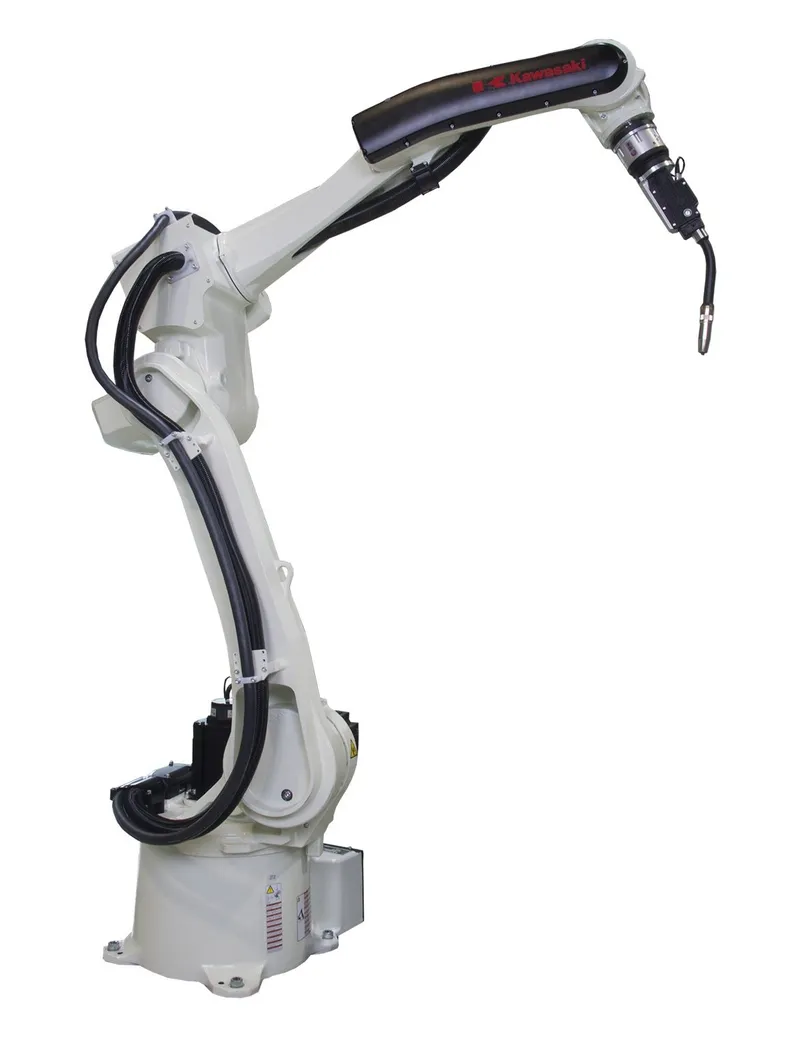

BA013L-A
A 6-axis, hollow-wrist arc-welding robot rated for 13 kg payload and 2,093 mm reach, with internal cable/torch routing to reduce cable wear and interference. In the catalog since 2022; a compact welding-cell configuration was newly demoed at Automate 2026.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 13 kg 67th pct in class

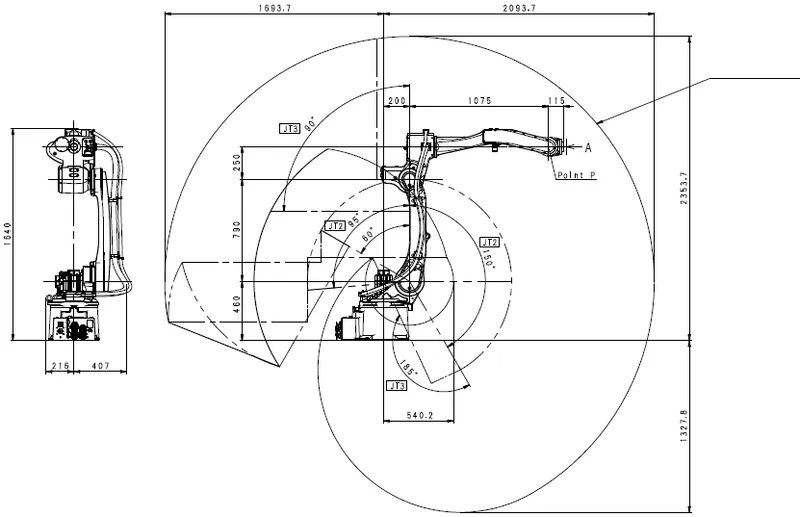

- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 2,093 mm 67th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.06 mm 0th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist torque
Allowable torque at the wrist axis — how much twisting force a tool can apply. Higher handles bigger/offset tools.
- 26 N·m 67th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 0.9 kg·m² 67th pct in class
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 280 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 38th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 35 to 85 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Specifications sourced from Kawasaki Robotics official datasheet ↗. Specs last verified 2026-07-13.
Owner reviews
Real, first-hand feedback from people who run the Kawasaki Robotics BA013L-A. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Kawasaki Robotics BA013L-A? +
The Kawasaki Robotics BA013L-A has a maximum payload of 13 kg.
What is the reach of the Kawasaki Robotics BA013L-A? +
The Kawasaki Robotics BA013L-A has a maximum reach of 2,093 mm (2.09 m).
What is the repeatability of the Kawasaki Robotics BA013L-A? +
The Kawasaki Robotics BA013L-A has a pose repeatability of ±0.06 mm (ISO 9283), making it suitable for precision work.
How many axes does the Kawasaki Robotics BA013L-A have? +
The Kawasaki Robotics BA013L-A is a 6-axis welding robot.
What is the Kawasaki Robotics BA013L-A used for? +
The Kawasaki Robotics BA013L-A is typically used for arc-welding, welding.
What controller does the Kawasaki Robotics BA013L-A use? +
The Kawasaki Robotics BA013L-A runs on the F02 controller.
