ROKAE
NB12-10/1.6
ROKAE NB12-10/1.6 is a 10 kg payload industrial robot with 1602 mm reach, 0.03 mm repeatability, and IP67 protection, built with built-in motors and cabling for a compact footprint.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 10 kg 27th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,602 mm 44th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.03 mm 51th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6

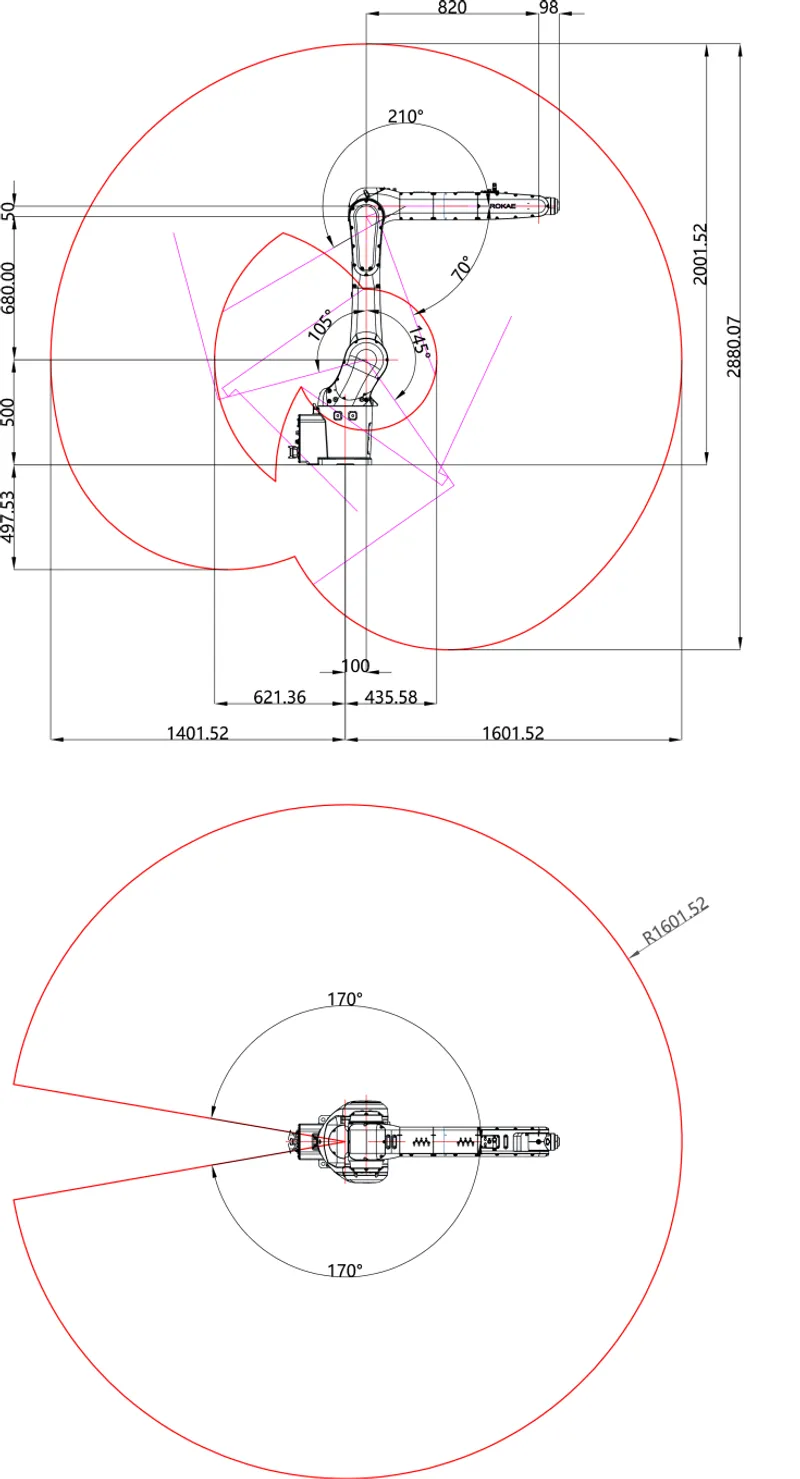

Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -170° to 170° | 245 °/s |
| J2 | -105° to 145° | 245 °/s |
| J3 | -210° to 70° | 290 °/s |
| J4 | -200° to 200° | 435 °/s |
| J5 | -135° to 135° | 450 °/s |
| J6 | -360° to 360° | 705 °/s |

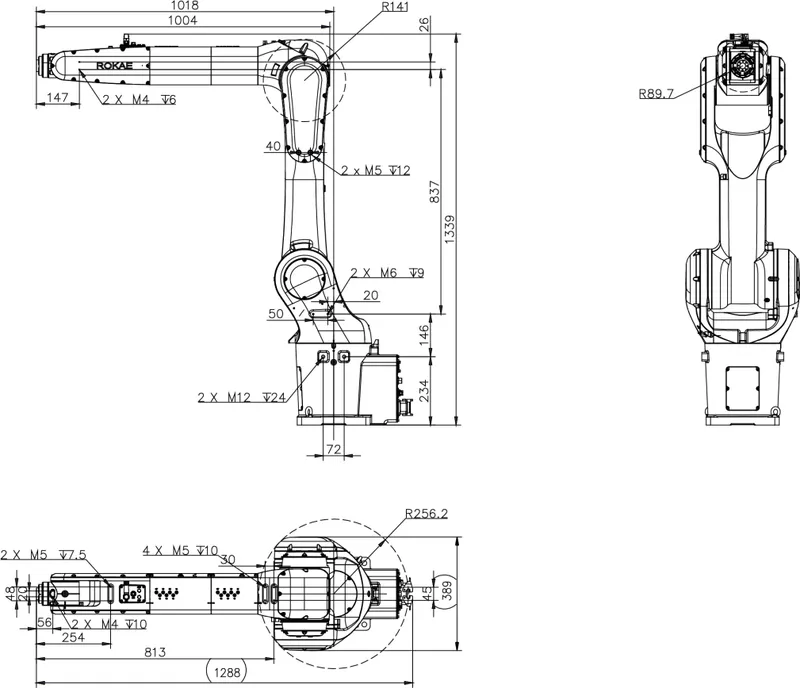

Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 117 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP67 71th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Specifications sourced from ROKAE official datasheet ↗. Specs last verified 2026-07-16.
Owner reviews
Real, first-hand feedback from people who run the ROKAE NB12-10/1.6. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ROKAE NB12-10/1.6? +
The ROKAE NB12-10/1.6 has a maximum payload of 10 kg.
What is the reach of the ROKAE NB12-10/1.6? +
The ROKAE NB12-10/1.6 has a maximum reach of 1,602 mm (1.60 m).
What is the repeatability of the ROKAE NB12-10/1.6? +
The ROKAE NB12-10/1.6 has a pose repeatability of ±0.03 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the ROKAE NB12-10/1.6 have? +
The ROKAE NB12-10/1.6 is a 6-axis articulated arm robot.
What is the ROKAE NB12-10/1.6 used for? +
The ROKAE NB12-10/1.6 is typically used for material-handling, machine-tending, assembly.
What controller does the ROKAE NB12-10/1.6 use? +
The ROKAE NB12-10/1.6 runs on the xCore controller.
What is the IP rating of the ROKAE NB12-10/1.6? +
The ROKAE NB12-10/1.6 arm carries an IP67 ingress-protection rating.
How much does the ROKAE NB12-10/1.6 cost? +
ROKAE NB12-10/1.6: Price on application. Industrial robots are typically quoted per project through authorized distributors.
