Stäubli Robotics
TX2touch-90
Stäubli's POWER cobot — the TX2touch-90 combines the full speed and payload of the TX2-90 industrial arm with SIL3/PLe-rated collaborative skin sensors and a 10 ms contact-response time, enabling genuine human-robot collaboration without speed reduction.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 10 kg 48th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,000 mm 48th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.04 mm 45th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 1.5 kg·m² 59th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -180° to 180° | 330 °/s |
| J2 | -130° to 147.5° | 340 °/s |
| J3 | -145° to 145° | 430 °/s |
| J4 | -270° to 270° | 540 °/s |
| J5 | -115° to 140° | 475 °/s |
| J6 | -270° to 270° | 760 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 116 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall
Power & controller
Electrical supply and the control cabinet that drives it.
- Power draw
Typical operating power consumption. Lower is more efficient.
- 575 W 35th pct in class
- Controller
The control cabinet / unit that runs the robot.
- CS9
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP65 63th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 31th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 40 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 30 to 95 %RH
- Cleanroom class
ISO 14644-1 cleanroom rating the robot is certified for. Lower number = cleaner environment.
- 5 ISO 0th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, ISO/TS 15066, SIL3, PLe
- Collab features
Collaborative safety functions: power-force-limiting, speed-and-separation monitoring, hand-guiding, safety-rated stops.
- capacitive-skin-sensing, power-force-limiting, safety-rated-stop, safe-speed-monitoring, safe-zone
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- VAL 3
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes

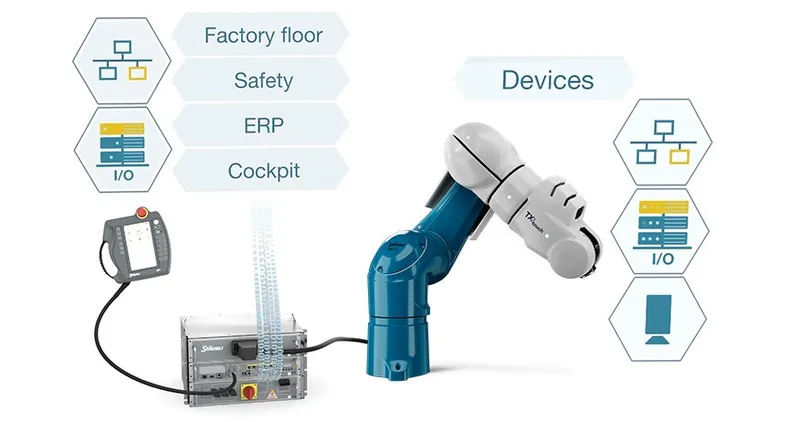

Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT, Modbus TCP
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- ISO/TS 15066 — the safety standard for collaborative robots working near people (force and speed limits)
- SIL3
- PLe — Performance Level e — the highest safety-integrity level for control and stop functions
Specifications sourced from Stäubli Robotics official datasheet ↗. Specs last verified 2026-08-01.
Owner reviews
Real, first-hand feedback from people who run the Stäubli Robotics TX2touch-90. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Stäubli Robotics TX2touch-90? +
The Stäubli Robotics TX2touch-90 has a maximum payload of 10 kg.
What is the reach of the Stäubli Robotics TX2touch-90? +
The Stäubli Robotics TX2touch-90 has a maximum reach of 1,000 mm (1.00 m).
What is the repeatability of the Stäubli Robotics TX2touch-90? +
The Stäubli Robotics TX2touch-90 has a pose repeatability of ±0.04 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Stäubli Robotics TX2touch-90 have? +
The Stäubli Robotics TX2touch-90 is a 6-axis collaborative robot.
What is the Stäubli Robotics TX2touch-90 used for? +
The Stäubli Robotics TX2touch-90 is typically used for assembly, machine-tending, pick-and-place, inspection, human-robot-collaboration.
Is the Stäubli Robotics TX2touch-90 a collaborative robot? +
Yes — the Stäubli Robotics TX2touch-90 is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What controller does the Stäubli Robotics TX2touch-90 use? +
The Stäubli Robotics TX2touch-90 runs on the CS9 controller.
What is the IP rating of the Stäubli Robotics TX2touch-90? +
The Stäubli Robotics TX2touch-90 arm carries an IP65 ingress-protection rating.
How much does the Stäubli Robotics TX2touch-90 cost? +
Stäubli Robotics TX2touch-90: Price on application. Industrial robots are typically quoted per project through authorized distributors.
