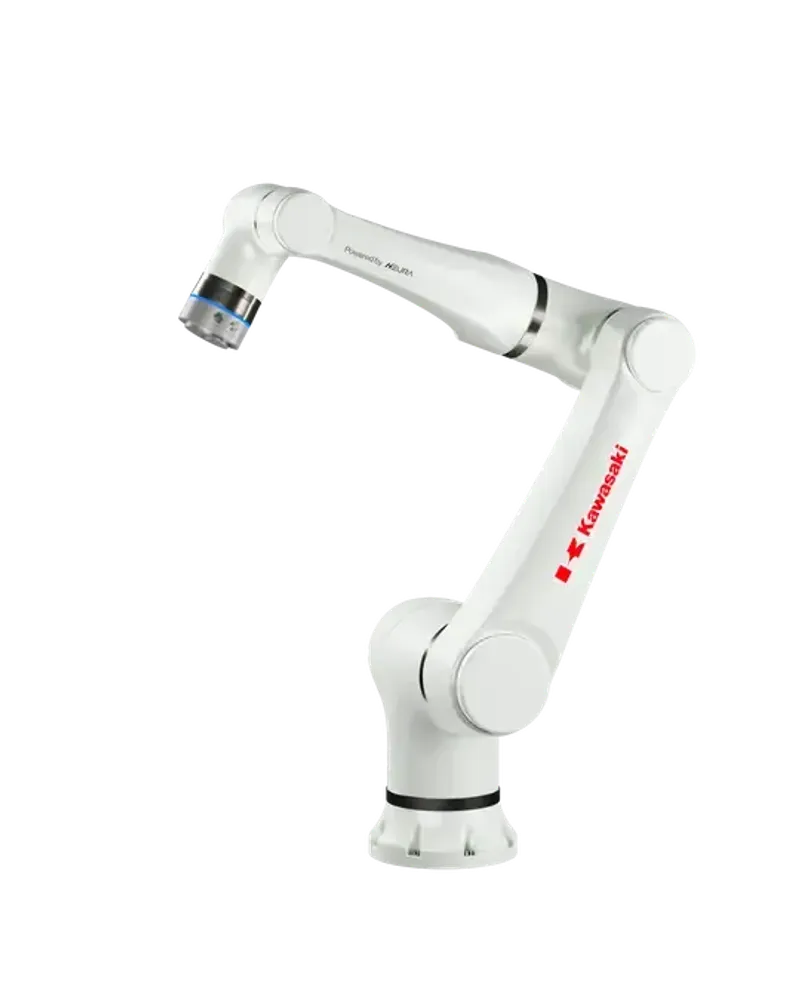

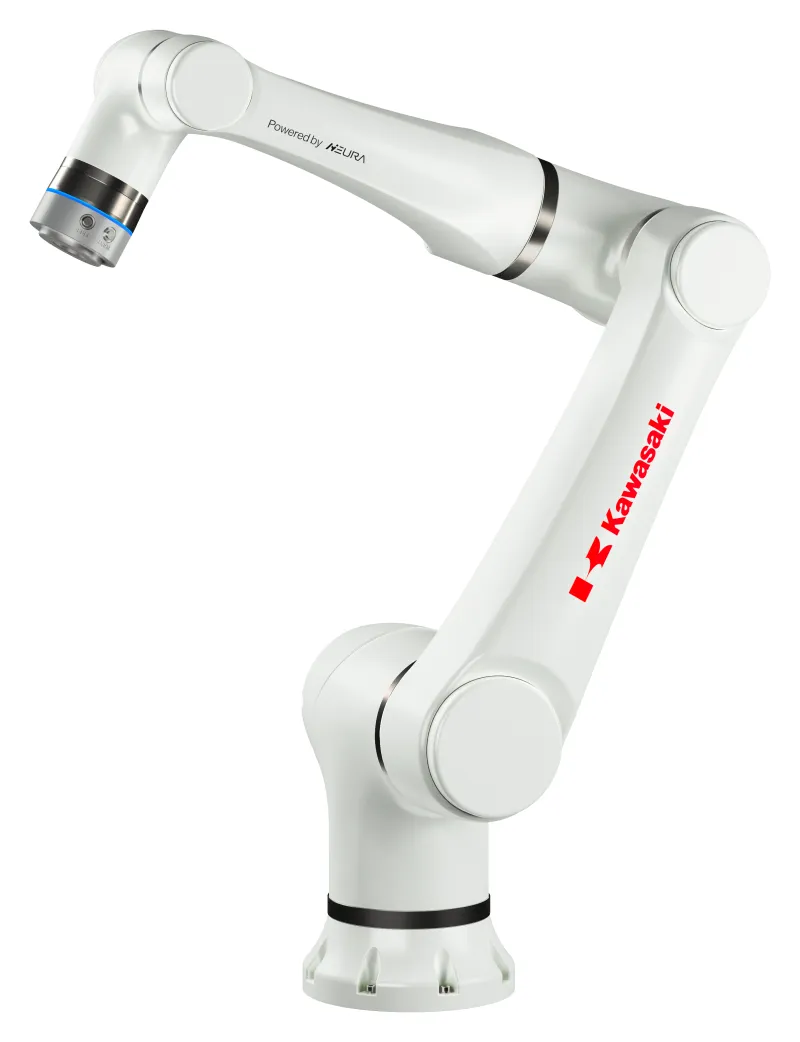

Product image © Kawasaki Robotics, shown for identification. Official source ↗.
Kawasaki Robotics
CL110N
The CL110N is the highest-payload model of Kawasaki's CL collaborative series (developed with NEURA Robotics): 10 kg payload, 1000 mm reach, ±0.02 mm repeatability, 200°/s speed and IP66 sealing for heavier collaborative handling and assembly.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 10 kg 48th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,000 mm 48th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.02 mm 74th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 200 °/s 35th pct in class
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -180° to 180° | 130 °/s |
| J2 | -135° to 135° | 130 °/s |
| J3 | -150° to 150° | 150 °/s |
| J4 | -180° to 180° | 150 °/s |
| J5 | -180° to 180° | 180 °/s |
| J6 | -360° to 360° | 180 °/s |
Physical
Size, mass and how it mounts.
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall, any
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP66 73th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 50 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1, ISO/TS 15066
- Cert. cobot payload
Payload at which collaborative (force-limited) operation is still certified.
- 10 kg 47th pct in class
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- hand-guiding, graphical, teach-pendant
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
- ISO/TS 15066 — the safety standard for collaborative robots working near people (force and speed limits)
Specifications sourced from Kawasaki Robotics official datasheet ↗. Specs last verified 2026-07-06.
Owner reviews
Real, first-hand feedback from people who run the Kawasaki Robotics CL110N. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Kawasaki Robotics CL110N? +
The Kawasaki Robotics CL110N has a maximum payload of 10 kg.
What is the reach of the Kawasaki Robotics CL110N? +
The Kawasaki Robotics CL110N has a maximum reach of 1,000 mm (1.00 m).
What is the repeatability of the Kawasaki Robotics CL110N? +
The Kawasaki Robotics CL110N has a pose repeatability of ±0.02 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Kawasaki Robotics CL110N have? +
The Kawasaki Robotics CL110N is a 6-axis collaborative robot.
What is the Kawasaki Robotics CL110N used for? +
The Kawasaki Robotics CL110N is typically used for assembly, material-handling, machine-tending, palletizing.
Is the Kawasaki Robotics CL110N a collaborative robot? +
Yes — the Kawasaki Robotics CL110N is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What is the IP rating of the Kawasaki Robotics CL110N? +
The Kawasaki Robotics CL110N arm carries an IP66 ingress-protection rating.
How much does the Kawasaki Robotics CL110N cost? +
Kawasaki Robotics CL110N: Price on application. Industrial robots are typically quoted per project through authorized distributors.
