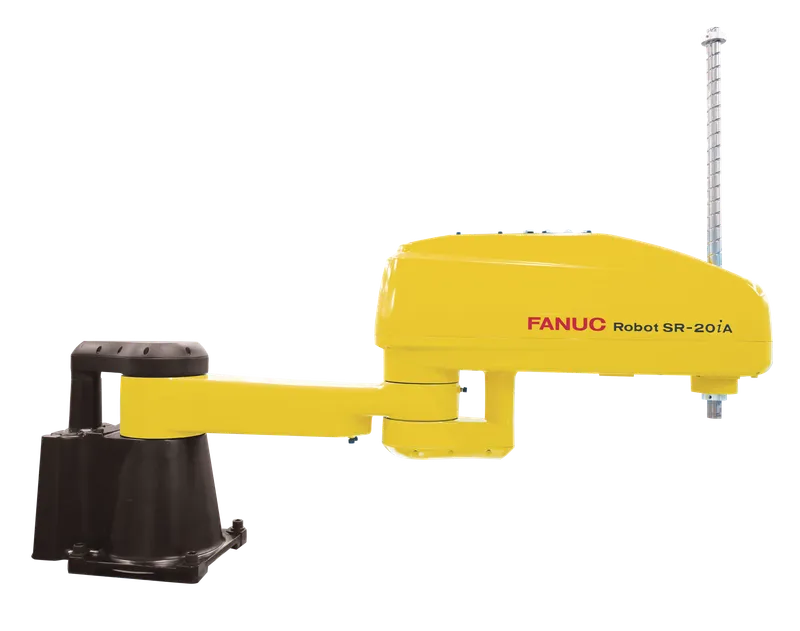

Product image © FANUC, shown for identification. Official source ↗.
FANUC
SR-20iA
A 4-axis SCARA robot with internally routed cables, 20 kg payload and 1,100 mm reach — a clean-look, compact design for robotic assembly and packaging lines.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 20 kg 79th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,100 mm 91th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.02 mm 21th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 2,800 mm/s 11th pct in class
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 0.45 kg·m² 72th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -145° to 145° | 440 °/s |
| J2 | -145° to 145° | 500 °/s |
| J4 | -720° to 720° | 1700 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 64 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, wall
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP20 0th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP20 0th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Specifications sourced from FANUC official datasheet ↗. Specs last verified 2026-07-13.
Owner reviews
Real, first-hand feedback from people who run the FANUC SR-20iA. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the FANUC SR-20iA? +
The FANUC SR-20iA has a maximum payload of 20 kg.
What is the reach of the FANUC SR-20iA? +
The FANUC SR-20iA has a maximum reach of 1,100 mm (1.10 m).
What is the repeatability of the FANUC SR-20iA? +
The FANUC SR-20iA has a pose repeatability of ±0.02 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the FANUC SR-20iA have? +
The FANUC SR-20iA is a 4-axis scara robot.
What is the FANUC SR-20iA used for? +
The FANUC SR-20iA is typically used for assembly, packaging, pick-and-place.
What is the IP rating of the FANUC SR-20iA? +
The FANUC SR-20iA arm carries an IP20 ingress-protection rating.
