Siasun
SA20A

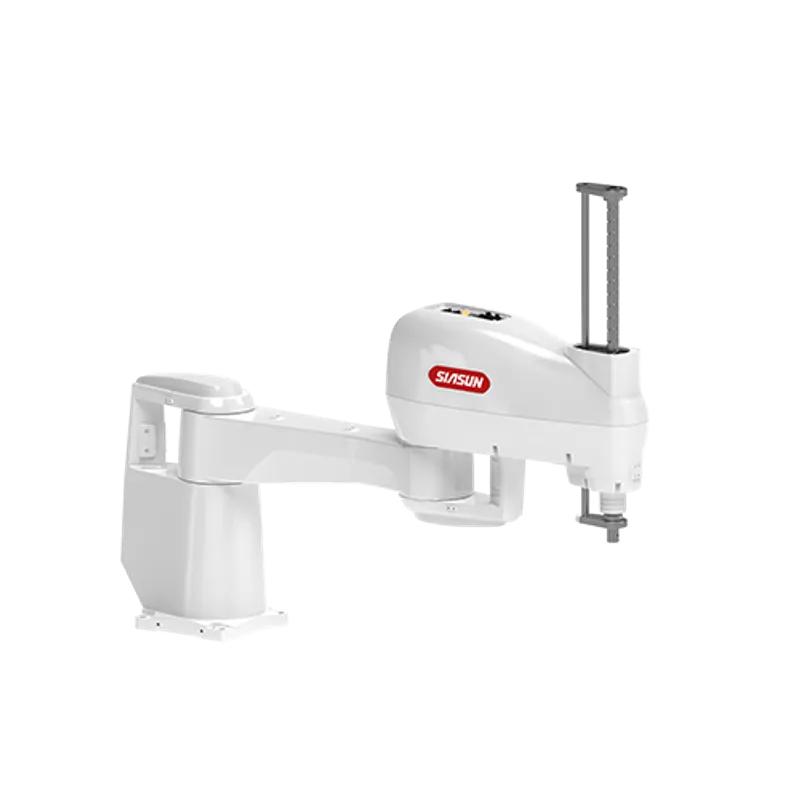

Siasun 20 kg payload, 1000 mm reach 4-axis SCARA robot, the heaviest member of the SA-series for large-component pick-and-place.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 20 kg 79th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,000 mm 84th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.025 mm 7th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 10,800 mm/s 89th pct in class

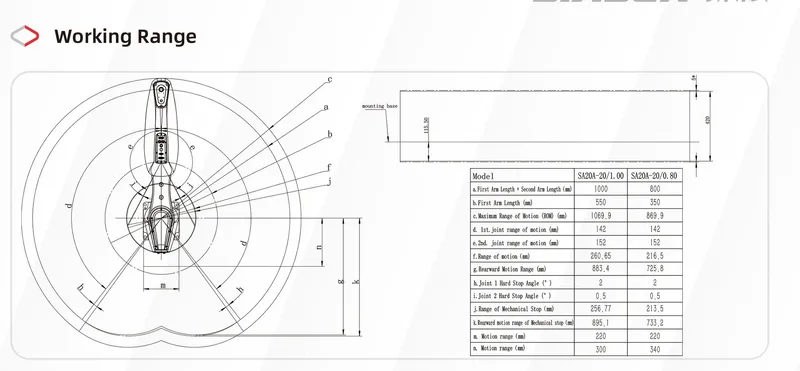

Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -142° to 142° | — |
| J2 | -152° to 152° | — |
| J4 | -360° to 360° | 705 °/s |

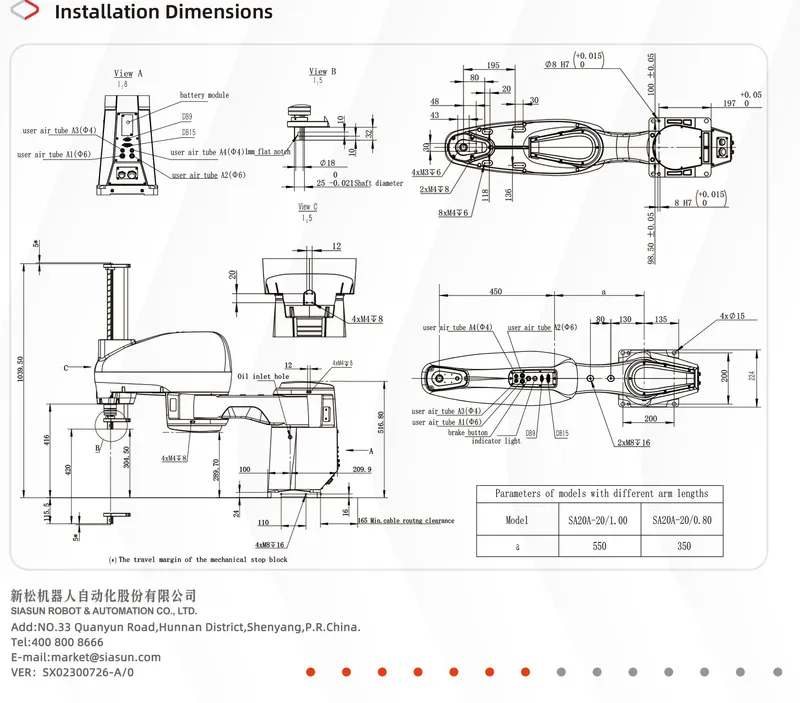

Physical
Size, mass and how it mounts.
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP20 0th pct in class
- Noise level
Operating sound pressure level. Lower is quieter.
- 75 dB(A) 0th pct in class
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Siasun official datasheet ↗. Specs last verified 2026-07-16.
Owner reviews
Real, first-hand feedback from people who run the Siasun SA20A. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Siasun SA20A? +
The Siasun SA20A has a maximum payload of 20 kg.
What is the reach of the Siasun SA20A? +
The Siasun SA20A has a maximum reach of 1,000 mm (1.00 m).
What is the repeatability of the Siasun SA20A? +
The Siasun SA20A has a pose repeatability of ±0.025 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Siasun SA20A have? +
The Siasun SA20A is a 4-axis scara robot.
What is the Siasun SA20A used for? +
The Siasun SA20A is typically used for assembly, pick-and-place, machine-tending.
What is the IP rating of the Siasun SA20A? +
The Siasun SA20A arm carries an IP20 ingress-protection rating.
How much does the Siasun SA20A cost? +
Siasun SA20A: Price on application. Industrial robots are typically quoted per project through authorized distributors.
