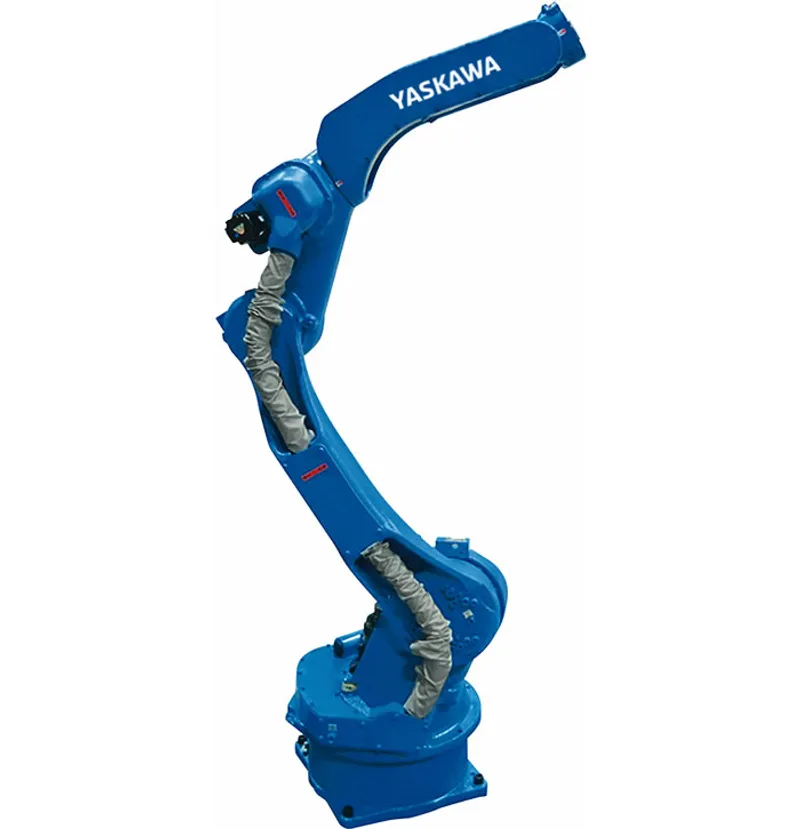

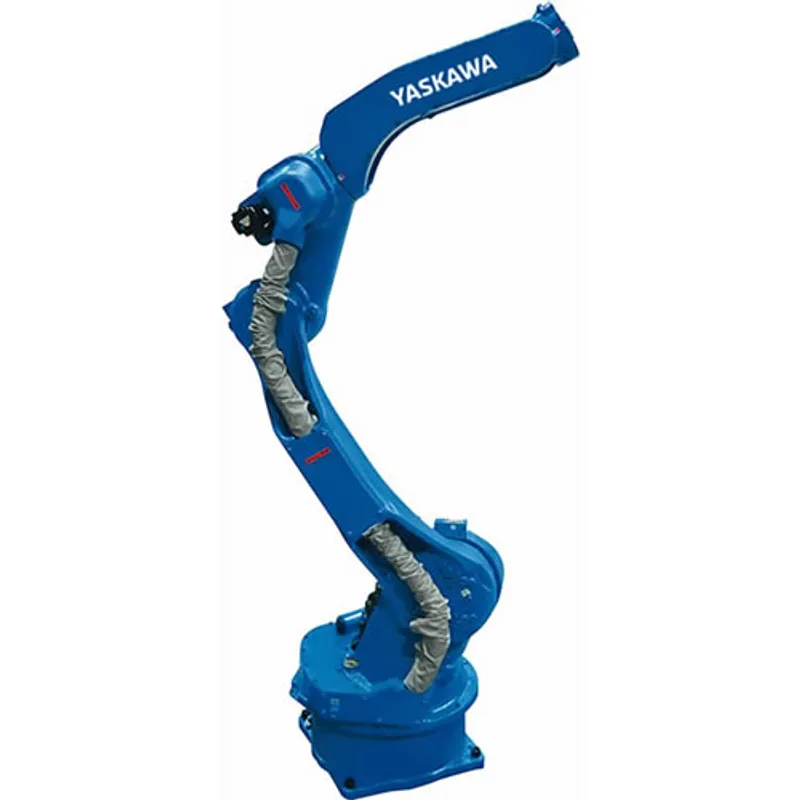

Yaskawa Motoman
MH24
Mid-payload 24 kg multi-purpose handling robot with 1730 mm reach and ±0.06 mm repeatability, adaptable for handling, welding and machine-tending with internally routed cables.
Payload
24 kg
Reach
1,730 mm
Repeatability
±0.06 mm

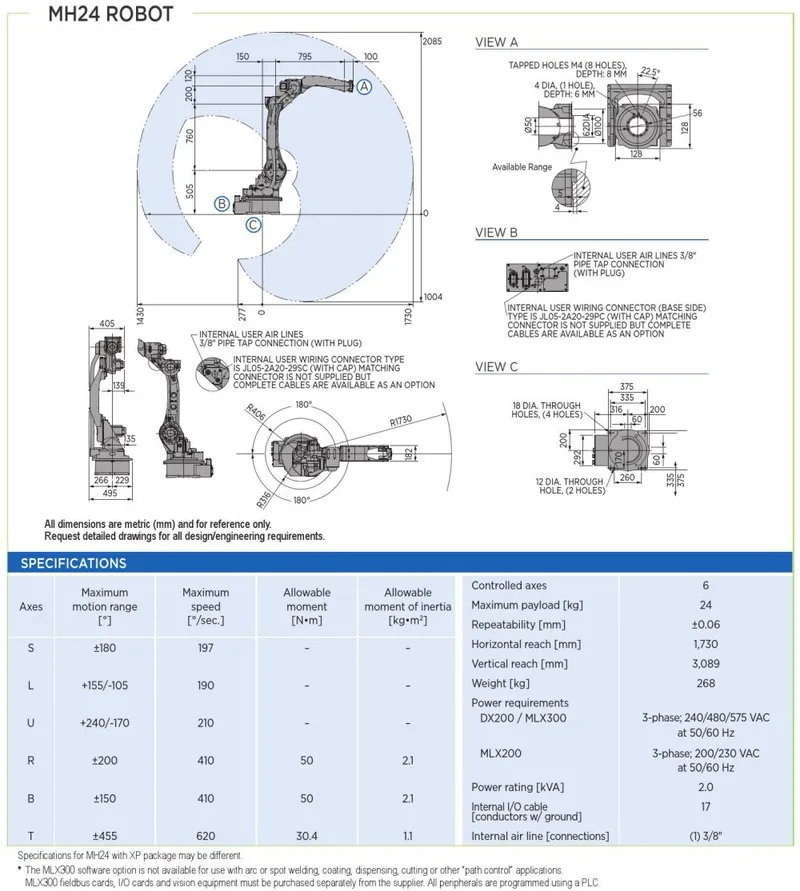

Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 24 kg 59th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 1,730 mm 57th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.06 mm 15th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 6
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 268 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor, ceiling, wall
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- YRC1000
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- INFORM
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- ros1
- Teach pendant
The handheld programming/jog device supplied.
- Smart Pendant
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
Specifications sourced from Yaskawa Motoman official datasheet ↗. Specs last verified 2026-06-23.
Frequently asked questions
What is the payload of the Yaskawa Motoman MH24? +
The Yaskawa Motoman MH24 has a maximum payload of 24 kg.
What is the reach of the Yaskawa Motoman MH24? +
The Yaskawa Motoman MH24 has a maximum reach of 1,730 mm (1.73 m).
What is the repeatability of the Yaskawa Motoman MH24? +
The Yaskawa Motoman MH24 has a pose repeatability of ±0.06 mm (ISO 9283), making it suitable for precision work.
How many axes does the Yaskawa Motoman MH24 have? +
The Yaskawa Motoman MH24 is a 6-axis articulated arm robot.
What is the Yaskawa Motoman MH24 used for? +
The Yaskawa Motoman MH24 is typically used for material-handling, welding, machine-tending, assembly.
What controller does the Yaskawa Motoman MH24 use? +
The Yaskawa Motoman MH24 runs on the YRC1000 controller.
