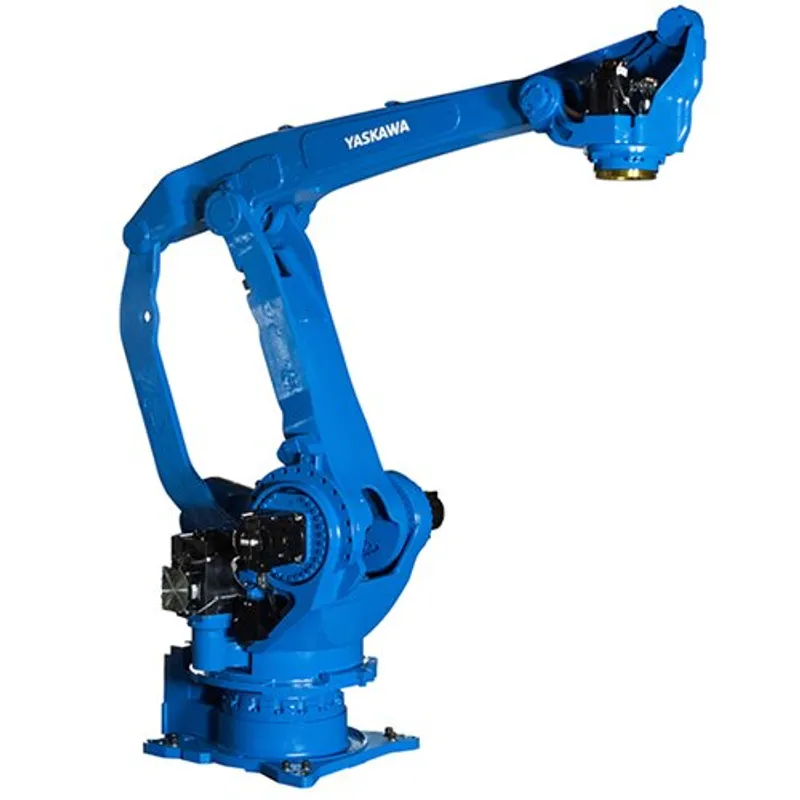

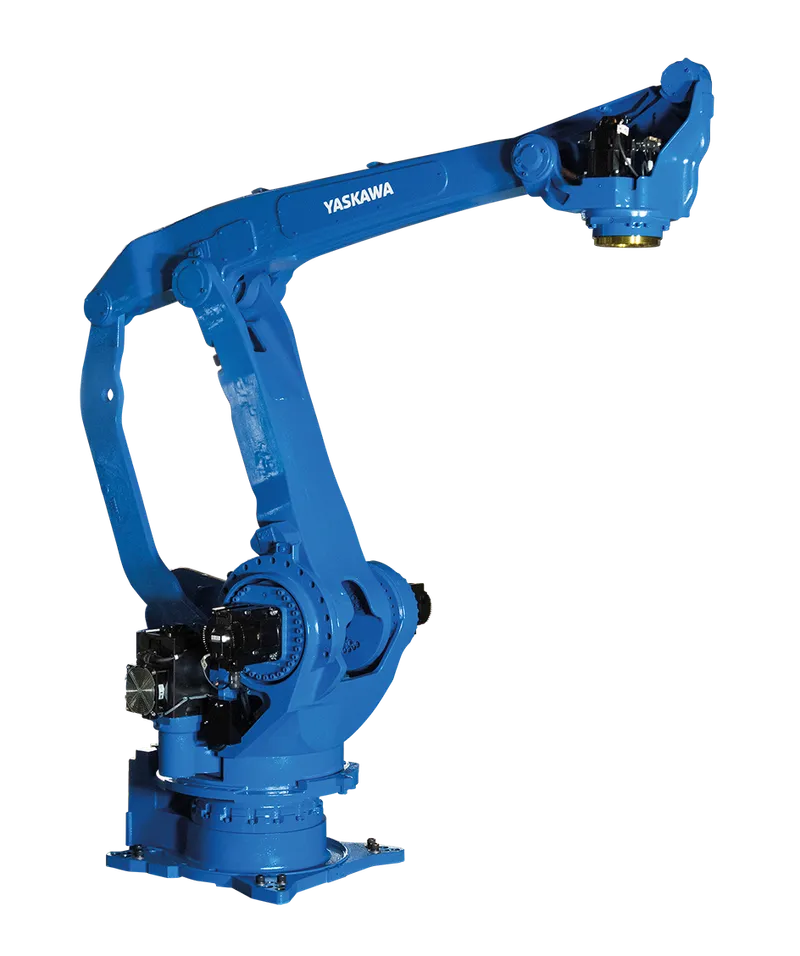

Yaskawa Motoman
PL190
High-speed four-axis palletizing robot with 190 kg payload and 3159 mm reach, featuring parallel-link construction and a 75 mm pass-through T-axis for versatile end-of-line automation.

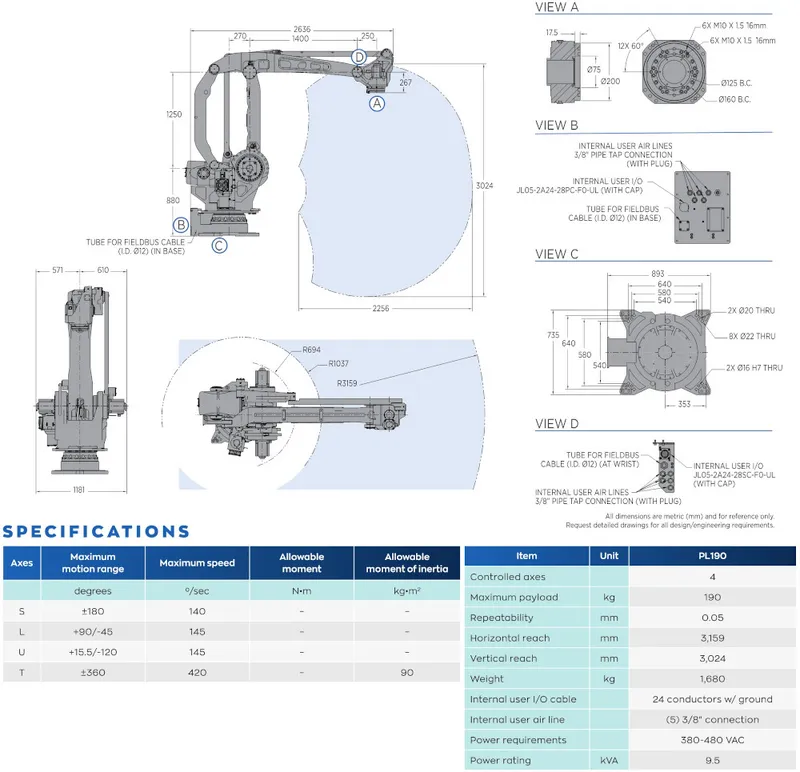

Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 190 kg 55th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,159 mm 55th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.05 mm 55th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
- Wrist inertia
Allowable moment of inertia at the wrist — how much rotating mass it can swing without overload. Higher is more capable.
- 90 kg·m² 33th pct in class
Motion range & speed
Per-axis travel limits and rotational speeds.
- Max axis speed
Highest rotational speed of the fastest joint. Higher helps short, fast moves.
- 420 °/s 75th pct in class
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 1,680 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
- Colour
Standard finish colour.
- Blue
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- 3-phase 380-480V AC 50/60Hz
- Power draw
Typical operating power consumption. Lower is more efficient.
- 9,500 W 0th pct in class
- Controller
The control cabinet / unit that runs the robot.
- YRC1000
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP65 44th pct in class
- IP rating (wrist)
Ingress protection at the wrist, often higher than the body for wet/washdown duty.
- IP67 0th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 0 to 45 °C
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-programming
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- INFORM
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- ros1
- Teach pendant
The handheld programming/jog device supplied.
- Smart Pendant
- Simulation
Offline programming / simulation software for the robot.
- PalletSolver
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
- Digital I/O
Built-in digital inputs/outputs for grippers, sensors and signalling.
- —
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Yaskawa Motoman official datasheet ↗. Specs last verified 2026-06-23.
Owner reviews
Real, first-hand feedback from people who run the Yaskawa Motoman PL190. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Yaskawa Motoman PL190? +
The Yaskawa Motoman PL190 has a maximum payload of 190 kg.
What is the reach of the Yaskawa Motoman PL190? +
The Yaskawa Motoman PL190 has a maximum reach of 3,159 mm (3.16 m).
What is the repeatability of the Yaskawa Motoman PL190? +
The Yaskawa Motoman PL190 has a pose repeatability of ±0.05 mm (ISO 9283), making it highly accurate for precision work.
How many axes does the Yaskawa Motoman PL190 have? +
The Yaskawa Motoman PL190 is a 4-axis palletizer robot.
What is the Yaskawa Motoman PL190 used for? +
The Yaskawa Motoman PL190 is typically used for palletizing, depalletizing, order-picking.
What controller does the Yaskawa Motoman PL190 use? +
The Yaskawa Motoman PL190 runs on the YRC1000 controller.
What is the IP rating of the Yaskawa Motoman PL190? +
The Yaskawa Motoman PL190 arm carries an IP65 ingress-protection rating.
