Kawasaki Robotics

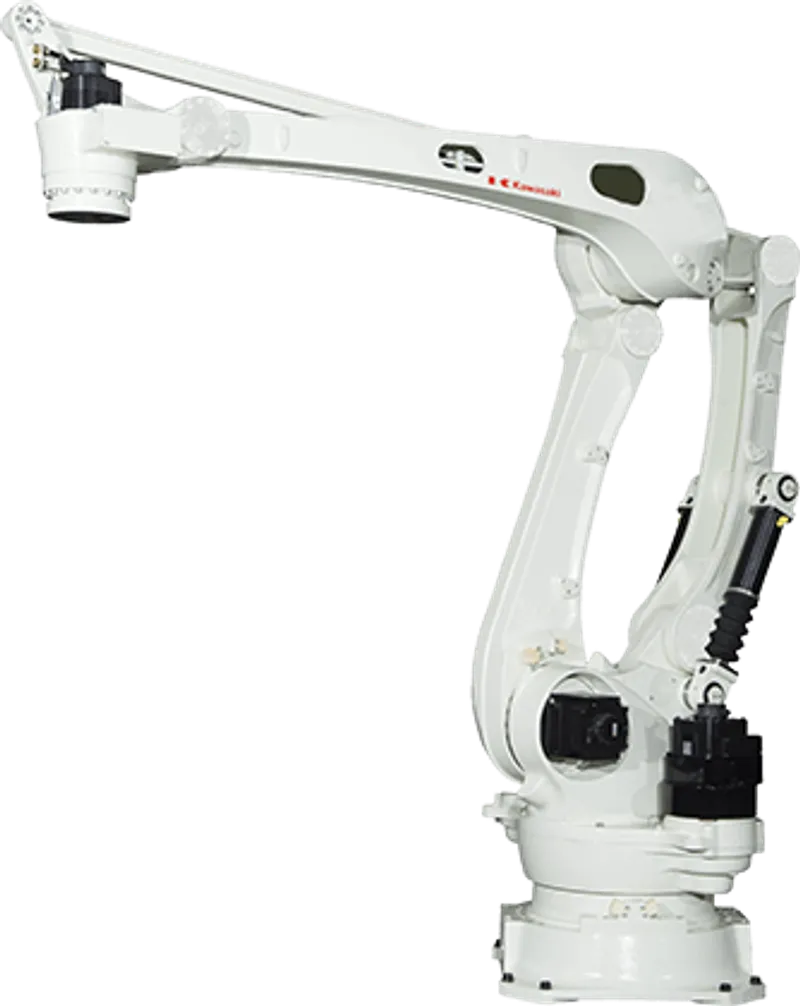

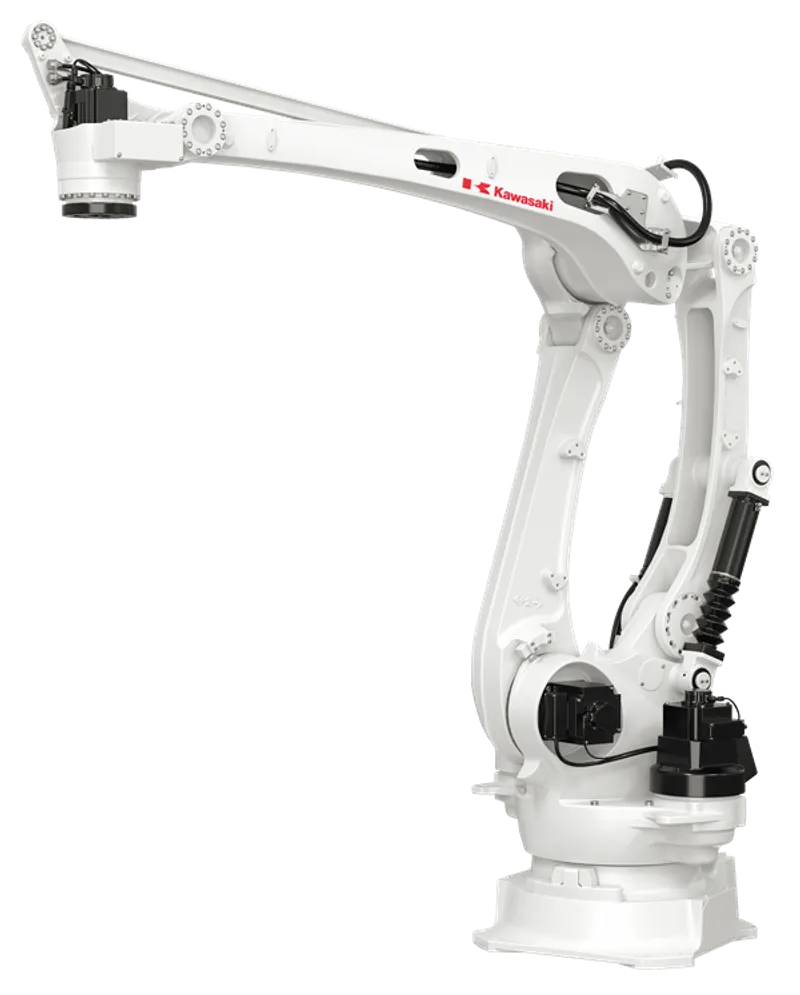

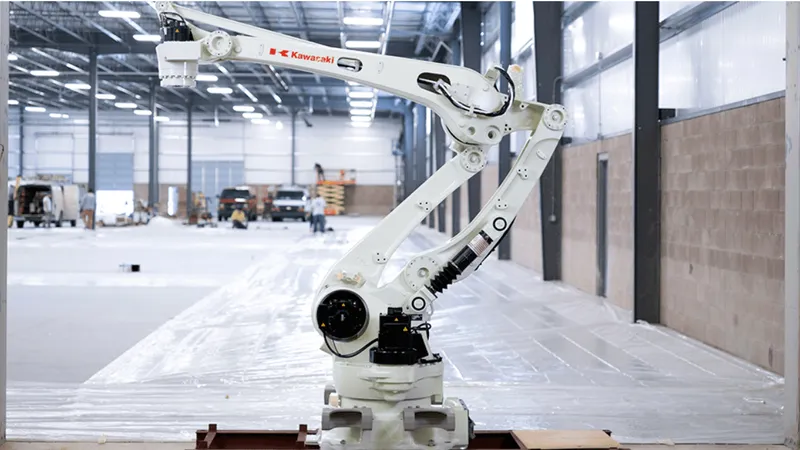

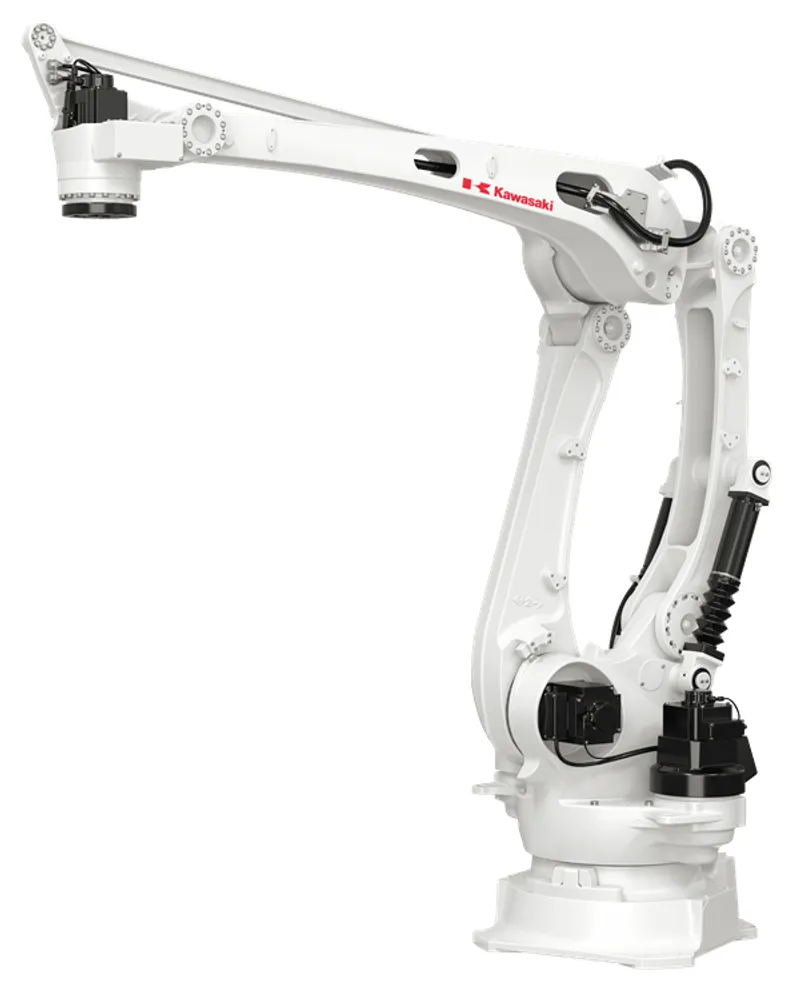

CP180L
A 4-axis high-speed palletizing robot with 180 kg payload and 3255 mm reach — delivering up to 2050 cycles/hour at loads up to 130 kg, with an integrated controller for space-efficient cell layouts.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 180 kg 36th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,255 mm 82th pct in class
- Repeatability
How close the robot returns to the same taught point on repeated tries (ISO 9283, ±). Lower is better — tighter precision.
- 0.5 mm 0th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
Motion range & speed
Per-axis travel limits and rotational speeds.
Motion range and maximum speed per joint.
| Axis | Range | Max speed |
|---|---|---|
| J1 | -160° to 160° | 140 °/s |
| J2 | -46° to 95° | 125 °/s |
| J3 | -110° to 15° | 130 °/s |
| J4 | -360° to 360° | 400 °/s |
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 1,600 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- floor
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- F03 Controller
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 10218-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- teach-pendant, offline-sim
- Languages
Native robot programming language(s) — e.g. KRL (KUKA), RAPID (ABB), URScript (UR), INFORM (Yaskawa).
- AS
- Offline programming
Whether programs can be built and validated offline in a digital twin before deployment.
- Yes
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- PROFINET, EtherNet/IP, EtherCAT
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 10218-1 — the primary industrial-robot safety standard covering design and construction requirements
Specifications sourced from Kawasaki Robotics official datasheet ↗. Specs last verified 2026-07-16.
Owner reviews
Real, first-hand feedback from people who run the Kawasaki Robotics CP180L. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the Kawasaki Robotics CP180L? +
The Kawasaki Robotics CP180L has a maximum payload of 180 kg.
What is the reach of the Kawasaki Robotics CP180L? +
The Kawasaki Robotics CP180L has a maximum reach of 3,255 mm (3.25 m).
What is the repeatability of the Kawasaki Robotics CP180L? +
The Kawasaki Robotics CP180L has a pose repeatability of ±0.5 mm (ISO 9283), making it suitable for precision work.
How many axes does the Kawasaki Robotics CP180L have? +
The Kawasaki Robotics CP180L is a 4-axis palletizer robot.
What is the Kawasaki Robotics CP180L used for? +
The Kawasaki Robotics CP180L is typically used for palletizing.
What controller does the Kawasaki Robotics CP180L use? +
The Kawasaki Robotics CP180L runs on the F03 Controller controller.
How much does the Kawasaki Robotics CP180L cost? +
Kawasaki Robotics CP180L: Price on application. Industrial robots are typically quoted per project through authorized distributors.
