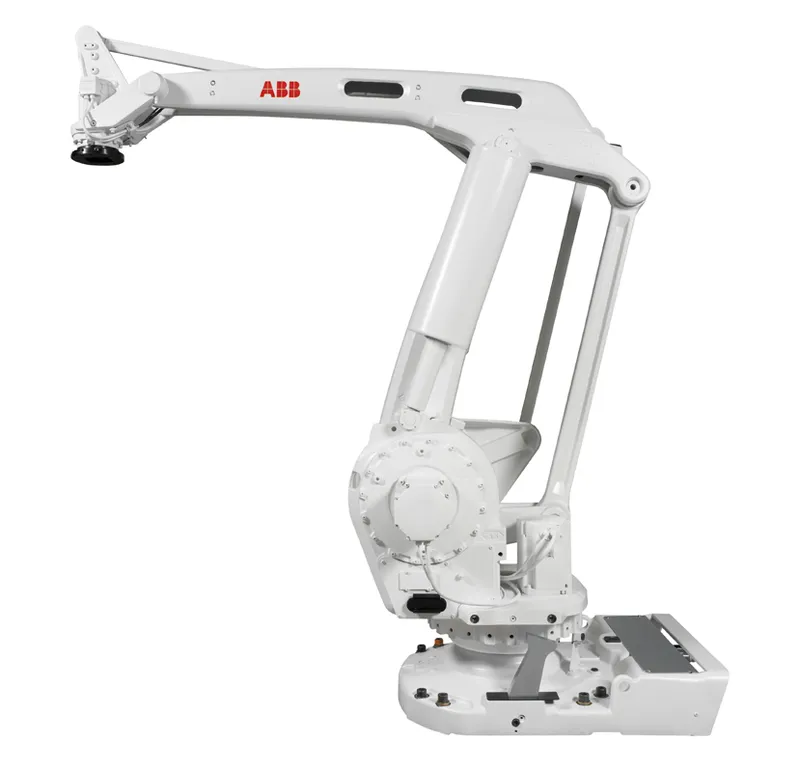

ABB Robotics
IRB 660-250/3.15
A dedicated 4-axis palletizer combining a 3.15 m reach with up to 250 kg payload and up to 1,570 cycles/hour, built to service multiple in-feed conveyors and pallet stacks for bag, box and crate palletizing.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 250 kg 50th pct in class
- Reach
Maximum horizontal distance from the base axis to the wrist — defines the size of the work area. Higher means a larger envelope.
- 3,150 mm 43th pct in class
- Axes (DOF)
Number of independently driven joints / degrees of freedom. 6 is standard for articulated arms; 4 for SCARA/palletizers; 7 adds elbow redundancy.
- 4
- Std cycle time
Time for a standard 25/305/25 mm pick-place move where published. Lower is faster.
- 2.29 s 33th pct in class
Power & controller
Electrical supply and the control cabinet that drives it.
- Controller
The control cabinet / unit that runs the robot.
- IRC5 / OmniCore V250XT
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
Industrial Robotics Hub — industrialroboticshub.com
Specifications sourced from ABB Robotics official datasheet ↗. Specs last verified 2026-08-31.
Owner reviews
Real, first-hand feedback from people who run the ABB Robotics IRB 660-250/3.15. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the ABB Robotics IRB 660-250/3.15? +
The ABB Robotics IRB 660-250/3.15 has a maximum payload of 250 kg.
What is the reach of the ABB Robotics IRB 660-250/3.15? +
The ABB Robotics IRB 660-250/3.15 has a maximum reach of 3,150 mm (3.15 m).
How many axes does the ABB Robotics IRB 660-250/3.15 have? +
The ABB Robotics IRB 660-250/3.15 is a 4-axis palletizer robot.
What is the ABB Robotics IRB 660-250/3.15 used for? +
The ABB Robotics IRB 660-250/3.15 is typically used for palletizing.
What controller does the ABB Robotics IRB 660-250/3.15 use? +
The ABB Robotics IRB 660-250/3.15 runs on the IRC5 / OmniCore V250XT controller.
