OMRON Robotics
HD-1500

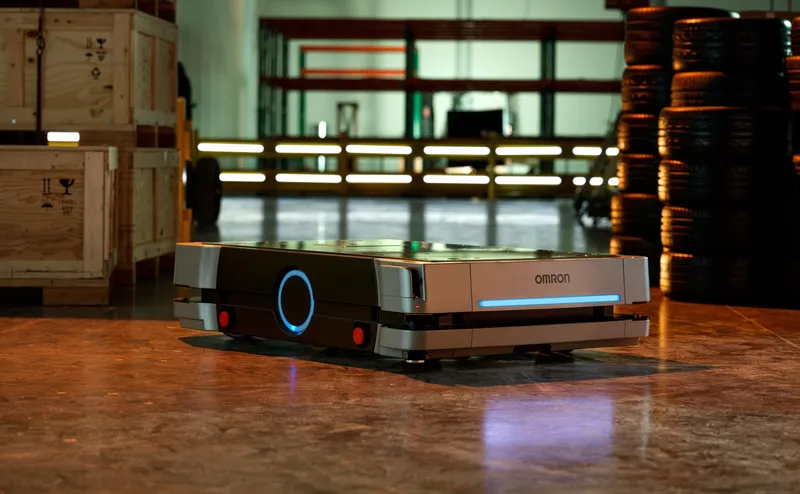

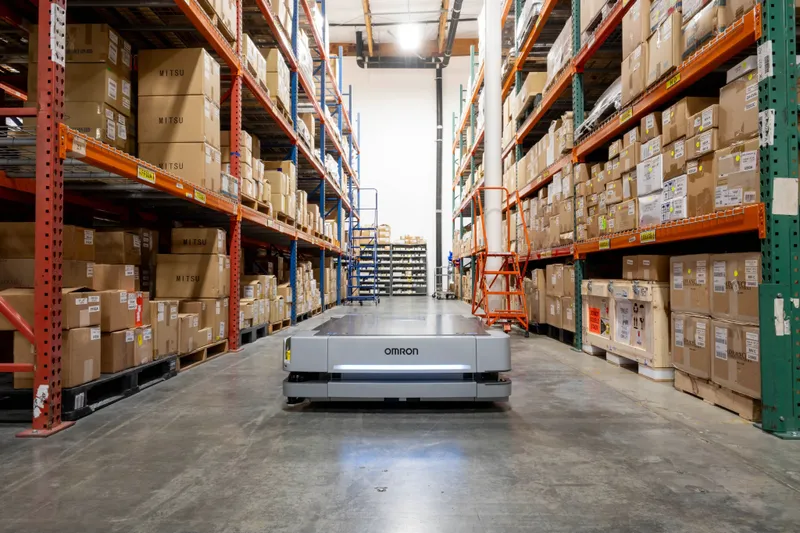

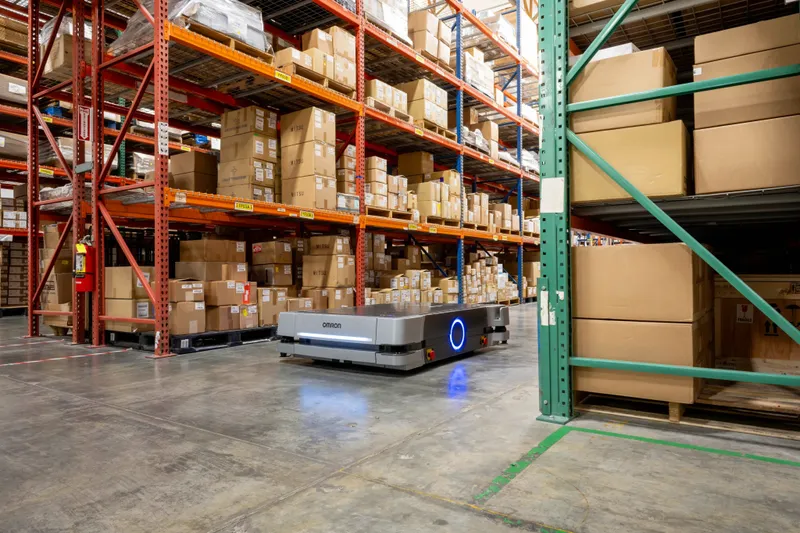

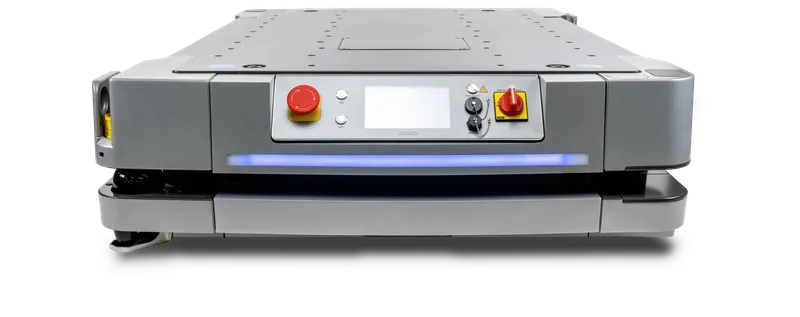

Heavy-duty autonomous mobile robot capable of transporting loads up to 1500 kg, designed for demanding industrial environments with IP54 protection.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 1,500 kg 86th pct in class
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 1,200 mm/s 0th pct in class
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 506 kg
Power & controller
Electrical supply and the control cabinet that drives it.
- Battery
Onboard battery capacity (mobile robots). Higher means longer runtime.
- 2,000 Wh 80th pct in class
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP54 57th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 40 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 5 to 95 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 3691-4
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- fleet-management-software
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- Ethernet
Industrial Robotics Hub — industrialroboticshub.com
Safety certifications
- ISO 3691-4
Specifications sourced from OMRON Robotics official datasheet ↗. Specs last verified 2026-08-01.
Owner reviews
Real, first-hand feedback from people who run the OMRON Robotics HD-1500. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the OMRON Robotics HD-1500? +
The OMRON Robotics HD-1500 has a maximum payload of 1,500 kg.
What is the OMRON Robotics HD-1500 used for? +
The OMRON Robotics HD-1500 is typically used for material-transport, intralogistics.
What is the IP rating of the OMRON Robotics HD-1500? +
The OMRON Robotics HD-1500 arm carries an IP54 ingress-protection rating.
