OMRON Robotics
LD-250

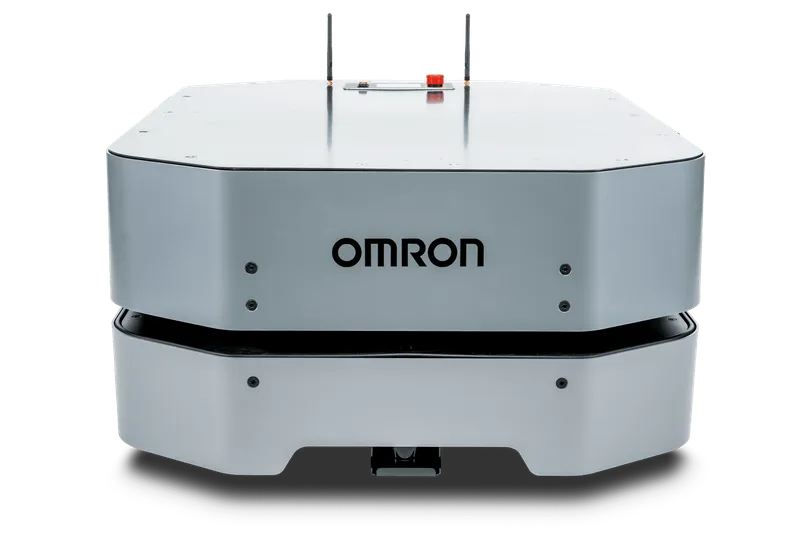

A 250 kg-payload autonomous mobile robot that navigates without floor markers, using onboard SLAM to move material safely through dynamic factory environments.
💲 Price on application
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 250 kg 29th pct in class
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 1,350 mm/s 29th pct in class
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 130 kg
- Mounting
Orientations the robot can be installed in (floor, ceiling/inverted, wall, tilted, mobile base).
- mobile-base
Power & controller
Electrical supply and the control cabinet that drives it.
- Power supply
Required input voltage / phase for the controller.
- Onboard Li-ion
- Controller
The control cabinet / unit that runs the robot.
- Onboard SLAM core
- Battery
Onboard battery capacity (mobile robots). Higher means longer runtime.
- 1,280 Wh 60th pct in class
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP20 0th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 40 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 5 to 95 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- Yes
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- EN 1525, ISO 3691-4
- Collab features
Collaborative safety functions: power-force-limiting, speed-and-separation monitoring, hand-guiding, safety-rated stops.
- speed-separation-monitoring, safety-rated-stop
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- graphical-blockly
- ROS support
Robot Operating System driver availability (none / ROS 1 / ROS 2 / both).
- none
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- EtherNet/IP
Safety certifications
- EN 1525
- ISO 3691-4
Specifications sourced from OMRON Robotics official datasheet ↗. Specs last verified 2026-08-01.
Owner reviews
Real, first-hand feedback from people who run the OMRON Robotics LD-250. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the OMRON Robotics LD-250? +
The OMRON Robotics LD-250 has a maximum payload of 250 kg.
What is the OMRON Robotics LD-250 used for? +
The OMRON Robotics LD-250 is typically used for logistics, material-handling.
Is the OMRON Robotics LD-250 a collaborative robot? +
Yes — the OMRON Robotics LD-250 is a collaborative robot (cobot) designed to work safely alongside people under ISO/TS 15066.
What controller does the OMRON Robotics LD-250 use? +
The OMRON Robotics LD-250 runs on the Onboard SLAM core controller.
What is the IP rating of the OMRON Robotics LD-250? +
The OMRON Robotics LD-250 arm carries an IP20 ingress-protection rating.
How much does the OMRON Robotics LD-250 cost? +
OMRON Robotics LD-250: Price on application. Industrial robots are typically quoted per project through authorized distributors.
