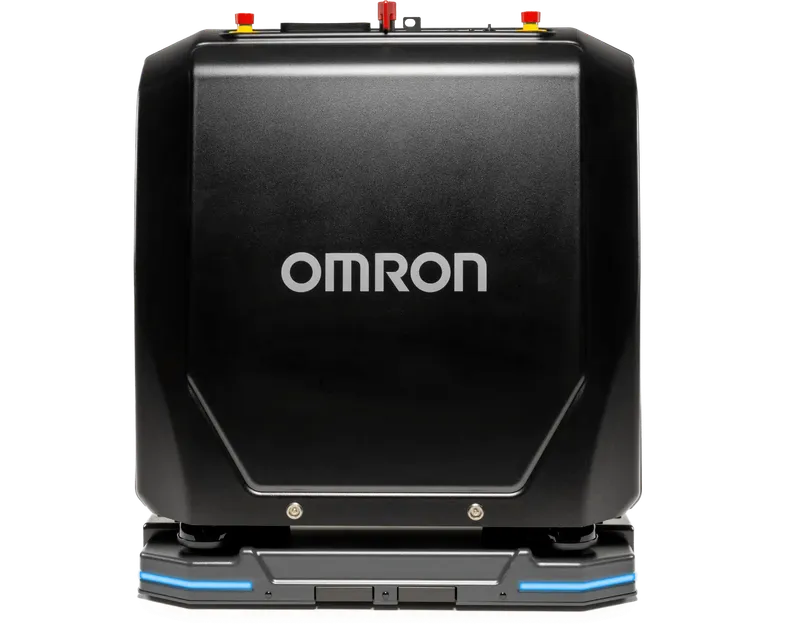

Product image © OMRON Robotics, shown for identification. Official source ↗.
OMRON Robotics
OL-450S
Ultra-low-profile, omni-directional AMR that drives under roll cages and picking carts to move combined loads up to 450 kg, with wireless charging and an adjustable 108-308 mm lift range.
Full specifications
Performance
How much it lifts, how far it reaches, how precisely it repeats.
- Payload
Maximum mass the robot can carry at the wrist flange, including the gripper/tool. Higher means it can handle heavier parts.
- 450 kg 43th pct in class
- Max TCP speed
Top linear speed of the tool centre point. Higher means faster cycle times.
- 1,200 mm/s 0th pct in class
Physical
Size, mass and how it mounts.
- Robot weight
Mass of the manipulator (arm) without controller. Lighter eases mounting and mobile use; heavier often means stiffer/higher payload.
- 188 kg
Power & controller
Electrical supply and the control cabinet that drives it.
- Battery
Onboard battery capacity (mobile robots). Higher means longer runtime.
- 1,075 Wh 40th pct in class
Environment
Conditions it can operate in — dust, water, temperature, cleanliness.
- IP rating (arm)
Ingress protection of the body against dust/water (IEC 60529). First digit = dust, second = water. Higher resists harsher environments.
- IP20 0th pct in class
- Operating temp
Ambient temperature range for normal operation.
- 5 to 40 °C
- Humidity
Permissible relative-humidity range (non-condensing).
- 5 to 95 %RH
Safety
Standards met and collaborative-operation capability.
- Collaborative
Whether the robot is designed to work safely next to people without fencing (power-and-force-limited).
- No
- Safety standards
Certified safety standards (ISO 10218-1, ISO/TS 15066) and functional-safety level (PLd/PLe, SIL2/3).
- ISO 3691-4, ISO 13849-1
Control & software
Programming, languages and ecosystem.
- Programming
How the robot is taught: pendant, hand-guiding (lead-through), block/flow-chart, scripting, offline simulation.
- fleet-management-software
Connectivity & I/O
Signals, fieldbuses and tooling interfaces.
- Fieldbus
Industrial networks supported for PLC/cell integration (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP, CC-Link, etc.).
- Wi-Fi
Safety certifications
- ISO 3691-4
- ISO 13849-1 — the standard defining Performance Levels (PLa–PLe) for machine safety-control systems
Specifications sourced from OMRON Robotics official datasheet ↗. Specs last verified 2026-08-03.
Owner reviews
Real, first-hand feedback from people who run the OMRON Robotics OL-450S. Sign in with LinkedIn so we know reviews come from actual operators. You choose whether to post under your name or anonymously.
We only read your name, photo and headline. Posting anonymously hides all of that from public view.
Frequently asked questions
What is the payload of the OMRON Robotics OL-450S? +
The OMRON Robotics OL-450S has a maximum payload of 450 kg.
What is the OMRON Robotics OL-450S used for? +
The OMRON Robotics OL-450S is typically used for material-transport, intralogistics.
What is the IP rating of the OMRON Robotics OL-450S? +
The OMRON Robotics OL-450S arm carries an IP20 ingress-protection rating.
